Windows PC
Full compatibility with Windows-based simulation setups using the supplied SimRacingStudio software.
DOF Reality H3 Motion Simulator Platform 3-Axis HERO
$3,499.00
DOF Reality H3 Motion Simulator Platform 3-Axis HERO
$3,499.00
3-Axis Full Motion

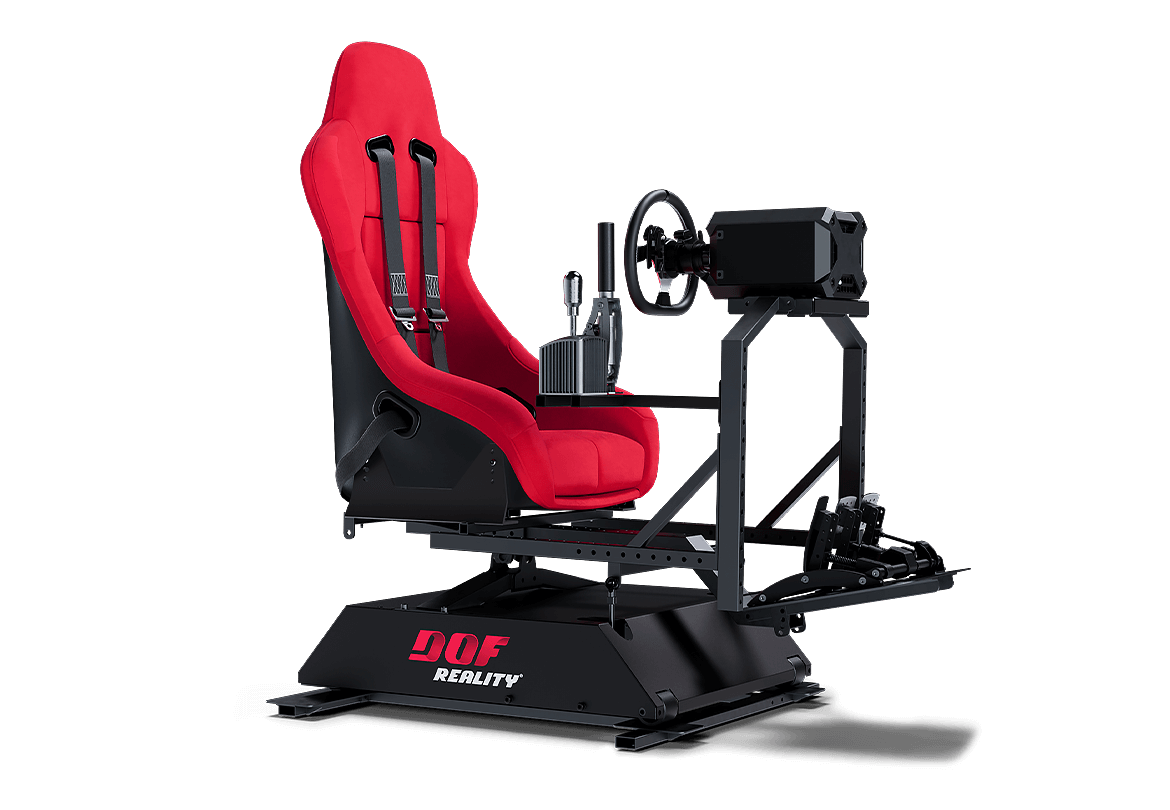

DOF Reality HERO 3 Motion Simulator Platform
The DOF Reality HERO 3 is a full-motion simulator platform providing three degrees of freedom: pitch, roll, and yaw/rear traction.
Its rear traction-loss system is designed to reproduce understeer, oversteer, drifting, acceleration, and side-to-side motion for a more immersive racing and simulation experience. The platform moves the seat together with mounted controls such as the wheel, pedals, joystick, and monitor, creating full-platform motion rather than moving only the seat.
Built from commercial-grade metal profiles, the HERO 3 supports a pilot weight of up to 330 lb / 150 kg and provides a 20° range of motion, speeds up to 50 cm/s (86°/s), and the listed acceleration performance of 0.7G T / 0.5G L.
The platform is supplied with a SimRacingStudio license and can be upgraded to DOF Reality P3 or P6 configurations.
Its rear traction-loss system is designed to reproduce understeer, oversteer, drifting, acceleration, and side-to-side motion for a more immersive racing and simulation experience. The platform moves the seat together with mounted controls such as the wheel, pedals, joystick, and monitor, creating full-platform motion rather than moving only the seat.
Built from commercial-grade metal profiles, the HERO 3 supports a pilot weight of up to 330 lb / 150 kg and provides a 20° range of motion, speeds up to 50 cm/s (86°/s), and the listed acceleration performance of 0.7G T / 0.5G L.
The platform is supplied with a SimRacingStudio license and can be upgraded to DOF Reality P3 or P6 configurations.
True 3-DOF Motion
Provides pitch, roll, and yaw/rear traction movement through a full-platform motion system.
Rear Traction Loss
Designed to reproduce rear traction loss, understeer, oversteer, and drifting sensations.
Full Platform Motion
The seat and mounted driving controls move together as part of the complete motion platform.
Commercial-Grade Structure
Constructed from commercial-grade metal profiles for the complete simulator platform.
Normal & F1 Driving Positions
The supplied rigid metal rig is designed to support normal and F1 driving poses.
Up to 330 lb / 150 kg Pilot Weight
Supports a listed pilot weight of up to 330 lb or 150 kg.
USB Control System
The platform includes a control unit with USB connectivity for the supplied motion system.
Upgradeable Platform
The HERO 3 is listed as upgradeable to DOF Reality P3 and P6 configurations.
Product Details

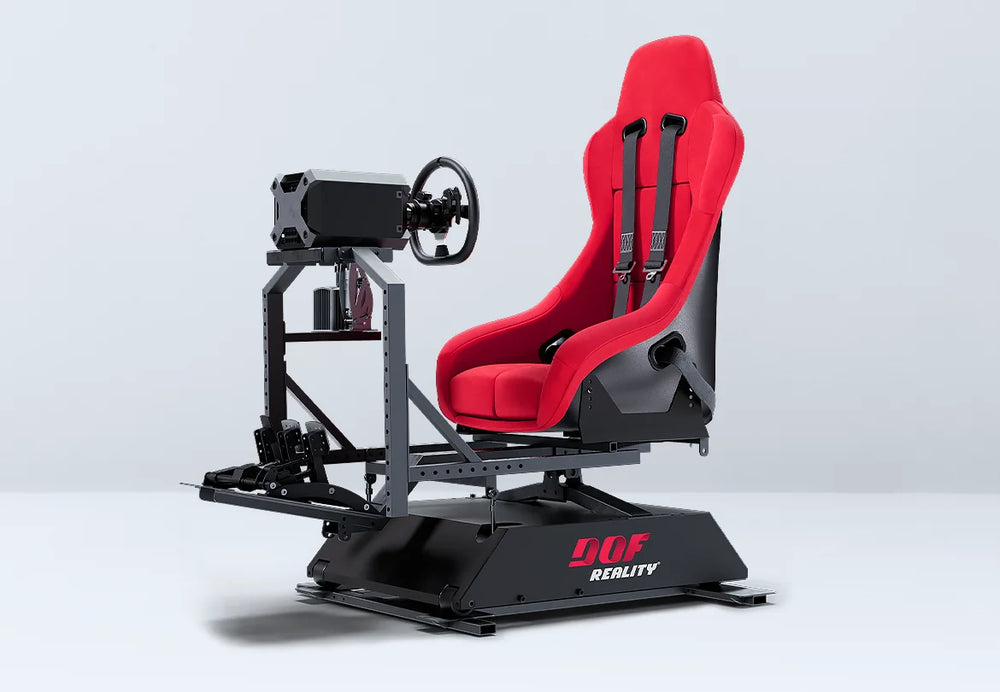

Technical Specifications
| Degrees of Freedom | 3 DOF |
|---|---|
| Motion Axes | Pitch + Roll + Yaw / Rear Traction |
| Full Platform Motion | Yes |
| Range of Motion | 20° |
| Speed | 50 cm/s (86°/s) |
| Torque | 25 n/m |
| Acceleration | 0.7G T / 0.5G L |
| Peak Power Consumption | 1300 W |
| Supported Pilot Weight | 330 lb / 150 kg |
| Material | Commercial-grade metal profiles |
| Floor Footprint | 3 × 5 ft, 2 ft H (100 × 150 cm, 60 cm H) |
| Box 1 | 28 kg, 90 × 33 × 20 cm |
| Box 2 | 29.97 kg, 60 × 40 × 30 cm |
| Warranty | Full 1 year |
| Upgrade Options | P3, P6 |
| Software | SimRacingStudio license included |
Complete Platform Package
What's Included
The HERO 3 is sold as a complete motion platform. Each system is assembled, tested, and tuned before being disassembled for shipping. The necessary platform components and quick-assembly tools are included.
1
Rigid metal rig designed for normal and F1 poses
2
Mounts for wheel, pedals, and shifter
3
Mounts for seat or sliding rails
4
Integrated power drive motors
5
Control unit with USB
6
SimRacingStudio license
7
Quick assembly tools
Racing, Flight & Simulation
PC, Console & VR Compatibility
The HERO 3 product page lists compatibility with Windows, PlayStation, Xbox, and VR. Console motion support is more specific: only games that transmit motion data through UDP can directly provide the required motion data, and the page identifies the MagicBox solution for those supported console titles.
PlayStation
Compatible with supported PlayStation titles that transmit motion data through UDP over the network.
Xbox
Compatible with supported Xbox titles that transmit motion data through UDP over the network.
VR
Fully suitable for VR-based racing, flight, and simulation setups.
Supported Console Titles
Compatible titles include Gran Turismo 7, Gran Turismo Sport, Project CARS, Project CARS 2, Assetto Corsa, F1, Forza Motorsport 7, and Forza Horizon 4 and 5.
MagicBox Support
MagicBox enables motion integration with supported console titles that output motion data through the network.
Bottom-Mount Seats
Compatible with most standard bottom-mount car and gaming seats, including seats installed with sliders or rails.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
The HERO 3 is shipped disassembled in two boxes for transportation.
The platform requires assembly. Each individual system is assembled, tested, and tuned before being disassembled for shipping.
All parts and tools required for quick assembly of the platform are included.
DOF Reality 3-Axis HERO (H3)
Discover the full potential of 3-Axis Hero (H3)
If you’re seeking the perfect racing simulator experience, the DOF Reality HERO 3 is for you. It boasts top-tier design, engineering, quality, and performance. This Motion Simulator Platform is created for customers craving unparalleled immersion and the most lifelike simulation available.
Our platform combines top-notch functionality with superior ergonomics, ensuring you’ll feel the same rush of adrenaline as in a real racing bolide.
Just like in a real car, all controllers (wheel, pedals, joystick, and monitor) move along with the seat in our full motion simulators.
This design and engineering allow for the effective simulation of g-forces through muscle pressure points. By opting for the best simulator platform, you future-proof your gaming experiences.
The HERO 3 offers true 3 degrees of freedom, accurately simulating roll, pitch, front center for body yaw, and true side-to-side and front-to-back motion. This means the HERO 3 faithfully replicates the acceleration, rear traction loss system, understeer, oversteer, and drifts, ensuring each feels distinct, as it should. It’s unmatched by anything else on the market.
COMPATIBILITY
Windows
PS
XBOX
VR

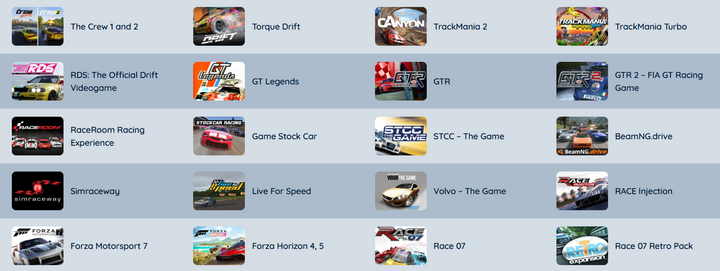

COMPATIBLE GAMES
Experience the Thrill of Racing and Gaming in DOF Reality 3-Axis HERO (H3)
FREQUENTLY ASKED QUESTIONS
DOF Reality ready-to-play packages include the following:
- Rigid metal rig designed for normal and F1 poses (except M2 models).
- Mounts for wheel, pedals, shifter (except M2 models).
- Mounts for a seat or sliding rails.
- Integrated power drive motors.
- 110/220v control unit with USB.
- SimRacingStudio license.
- Quick assembly tools.
Yes.
Consoles operate within a closed, controlled, and proprietary platform. Currently, only a select few games, such as Grand Turismo 7, Sport, PCARs, PCARs2, AC, F1, Forza Motorsport 7, and Forza Horizon 4 and 5, send motion data from consoles using UDP over the network (as demonstrated in this video).
For these games, we offer a MagicBox solution priced at $200. To enable motion in all other games, we are developing MagicWheel and MagicPedals, which will be available in two months.
Seat choice is a matter of personal preference. Almost any bottom-mount car or gaming seat works. We don’t sell seats; you can use your preferred seat or find affordable options locally. We recommend a Bucket Racing Seat to prevent falling during G-forces, and a four-six point harness is optional. A lighter seat enhances platform performance. For options, check eBay (Option 1, Option 2, Option 3), Amazon, or JEGS.
Real certified racing seats can be quite expensive, Ask for seat that is NOT certified for racing – they work the same way and are way cheaper than certified ones. In local classifieds, check for single racing seat. Finally, check the local racing community, they will be happy to help.
The best will be to use standard bottom mount car seat with sliders/rails (as in real car). It provides you the opportunity for quick adjustments as well.
Platform weight 130 – 220 lbs (60-100kg).
In order to deliver it to your door and ease of transportation all platforms are shipped in two boxes.
Our platforms require assembly. It will make your platform more valuable as well as custom-tailored build for your preferences.
It is a simple process that you will enjoy!
We are selling the complete platform. Each individual system is assembled, tested, and tuned. They’re disassembled before shipping, so all you need to do is put it together, install provided motion software on your PC, and connect our controller via USB! All parts and tools needed for quick assembly of the platform are included.
