Windows PC
Compatible with Windows-based racing, driving, flight, and simulation setups using the supplied SimRacingStudio motion software.
DOF Reality H6 Racing Motion Simulator Platform 6-Axis HERO
$7,999.00
DOF Reality H6 Racing Motion Simulator Platform 6-Axis HERO
$7,999.00
True 6-Axis Motion

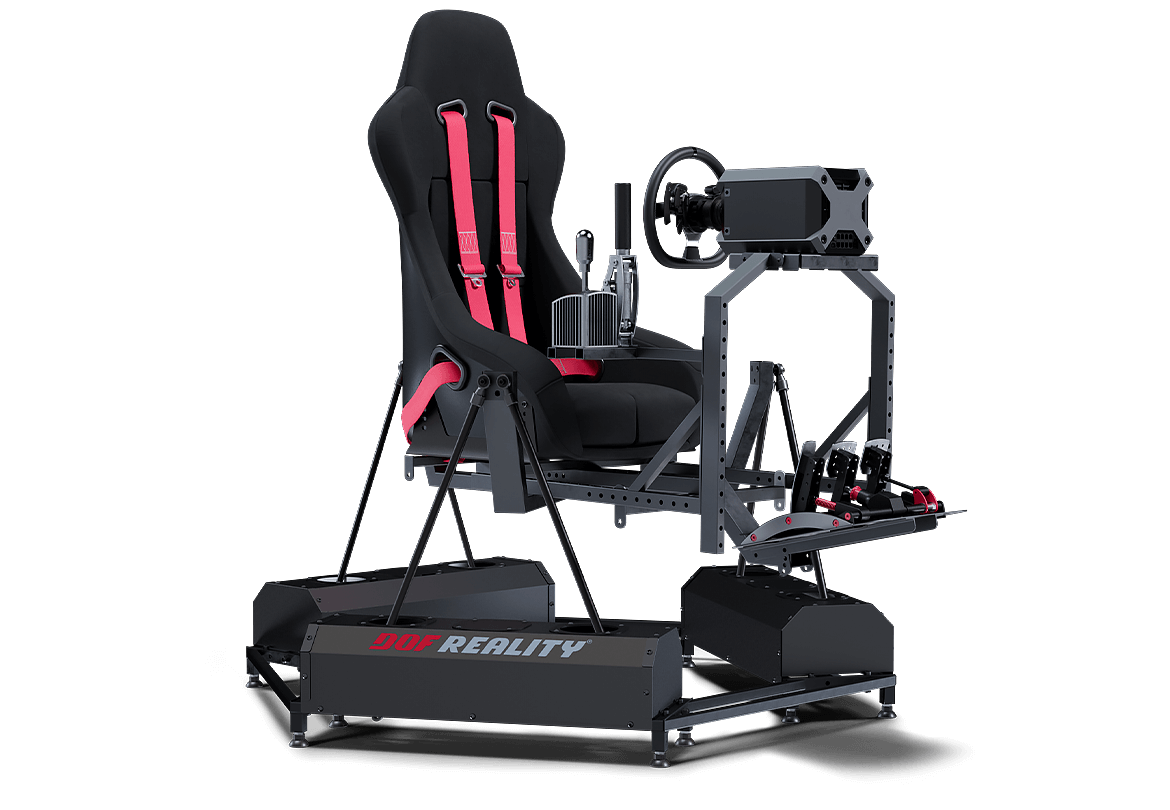

Full Motion in Every Direction
The DOF Reality HERO 6 is a compact full-motion simulator platform engineered to reproduce six independent axes of movement: pitch, roll, yaw, surge, sway, and heave.
Unlike motion systems that rely primarily on cockpit tilting, the HERO 6 is designed to reproduce true side-to-side, front-to-back, and vertical movement. Separate front and rear roll centers help simulate body roll and yaw, while acceleration, understeer, oversteer, and drifting can each produce distinct motion sensations.
The entire simulator platform moves together, including the seat and mounted controls such as the wheel, pedals, joystick, and monitor. This full-platform approach is designed to simulate g-forces through body and muscle pressure points for a more immersive racing, flight, and simulation experience.
Built from commercial-grade metal profiles, the HERO 6 supports drivers up to 330 lb / 150 kg and delivers a 17° range of motion, speeds up to 50 cm/s (86°/s), and 0.5G acceleration in all directions.
Unlike motion systems that rely primarily on cockpit tilting, the HERO 6 is designed to reproduce true side-to-side, front-to-back, and vertical movement. Separate front and rear roll centers help simulate body roll and yaw, while acceleration, understeer, oversteer, and drifting can each produce distinct motion sensations.
The entire simulator platform moves together, including the seat and mounted controls such as the wheel, pedals, joystick, and monitor. This full-platform approach is designed to simulate g-forces through body and muscle pressure points for a more immersive racing, flight, and simulation experience.
Built from commercial-grade metal profiles, the HERO 6 supports drivers up to 330 lb / 150 kg and delivers a 17° range of motion, speeds up to 50 cm/s (86°/s), and 0.5G acceleration in all directions.
True 6-DOF Motion
Experience pitch, roll, yaw, surge, sway, and heave from a single full-motion simulator platform.
Full Platform Movement
The seat and mounted controls move together to create a complete motion-simulation experience.
Multi-Directional Acceleration
Reproduces true side-to-side, front-to-back, and vertical movement with acceleration up to 0.5G in all directions.
Separate Roll Centers
Separate front and rear roll centers allow the platform to reproduce body roll and yaw with greater motion distinction.
Realistic Vehicle Dynamics
Designed to differentiate acceleration, understeer, oversteer, drifting, and other dynamic vehicle movements.
Commercial-Grade Structure
Built from commercial-grade metal profiles for a complete full-motion simulator platform.
Up to 330 lb / 150 kg
Supports a pilot weight of up to 330 lb or 150 kg.
SimRacingStudio Integration
Includes a SimRacingStudio license and USB-connected control system for motion operation.
Product Details

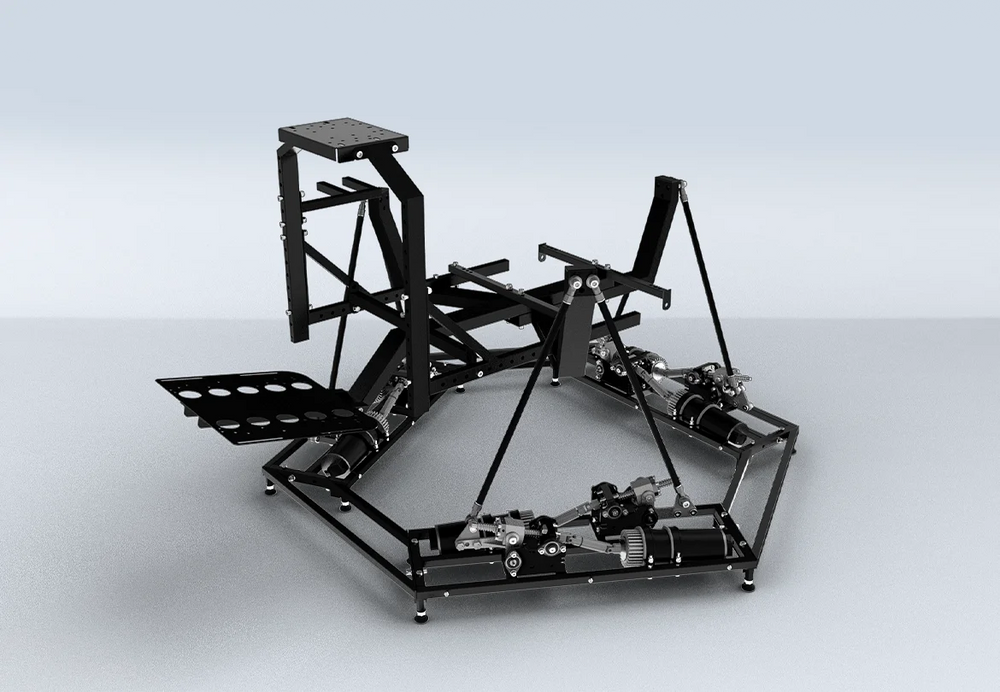

Technical Specifications
| Degrees of Freedom | 6 DOF |
|---|---|
| Motion Axes | Pitch, Roll, Yaw, Surge, Sway, Heave |
| Full Platform Motion | Yes |
| Range of Motion | 17° |
| Speed | 50 cm/s (86°/s) |
| Torque | 28 n/m |
| Acceleration | 0.5G in all directions |
| Peak Power Consumption | 1200 W |
| Supported Pilot Weight | 330 lb / 150 kg |
| Material | Commercial-grade metal profiles |
| Floor Footprint | 4 × 5 ft, 2 ft H (120 × 150 cm, 60 cm H) |
| Box 1 | 58.95 kg, 100 × 95 × 35 cm |
| Box 2 | 23.8 kg, 60 × 40 × 40 cm |
| Warranty | Full 1 year |
| Motion Software | SimRacingStudio license included |
| Control Connection | USB |
Complete Motion Platform
Everything Needed to Build Your HERO 6
The HERO 6 is supplied as a complete motion-platform package. Each system is assembled, tested, and tuned before being disassembled for shipping. Once delivered, assemble the platform, install the supplied motion software on your PC, and connect the controller through USB.
1
Rigid metal rig designed for normal and F1 driving poses
2
Mounts for wheel, pedals, and shifter
3
Mounts for seat or sliding rails
4
Integrated power drive motors
5
Control unit with USB
6
SimRacingStudio license
7
Quick assembly tools
Racing, Flight & Simulation
Built for PC, Console & VR Simulation
The HERO 6 supports a wide range of racing, driving, flight, and simulation experiences across Windows PC, PlayStation, Xbox, and VR. Console motion support depends on games capable of transmitting motion data through UDP over the network.
PlayStation
Supports compatible PlayStation titles that output motion data through UDP over the network when used with the required console motion solution.
Xbox
Supports compatible Xbox titles that output motion data through UDP over the network when used with the required console motion solution.
VR
Suitable for immersive VR racing, flight, and simulation experiences.
Console Motion Support
Supported console titles include Gran Turismo 7, Gran Turismo Sport, Project CARS, Project CARS 2, Assetto Corsa, F1, Forza Motorsport 7, and Forza Horizon 4 and 5.
MagicBox
Provides motion-data integration for supported PlayStation and Xbox titles that transmit motion information through UDP.
PC Racing Games
Compatible titles include iRacing, Assetto Corsa and Competizione, rFactor, rFactor 2, Automobilista, RaceRoom, BeamNG.drive, WRC, Dirt, Forza, and many other racing simulations.
Flight Simulation
Compatible titles include Microsoft Flight Simulator 2020 and 2024, Microsoft Flight Simulator X, DCS, X-Plane 10, 11 and 12, IL-2 Sturmovik, Aerofly FS 2, Falcon BMS, and other supported flight simulations.
Driving & Simulation Games
Supports titles including American Truck Simulator, Euro Truck Simulator 2, Farming Simulator, City Car Driving, Tourist Bus Simulator, Fernbus Coach Simulator, and other supported simulation titles.
Bottom-Mount Seats
Compatible with most standard bottom-mount car and gaming seats, including installations using seat sliders or rails.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
The HERO 6 ships in two boxes for easier transportation and requires assembly after delivery.
Each individual platform is assembled, tested, and tuned before being disassembled for shipping.
All components and quick-assembly tools required to build the platform are included.
DOF Reality 6-Axis HERO (H6)
Discover the full potential of 6-Axis Hero (H6)
If you’re seeking the ultimate racing simulator experience, the DOF Reality HERO 6 is tailor-made for you. It boasts top-tier design, engineering, quality, and performance. This Motion Simulator Platform is created for customers craving unparalleled immersion and the most lifelike simulation available.
Our platform combines top-notch functionality with superior ergonomics, ensuring you’ll feel the same rush of adrenaline as in a real racing bolide.
Just like in a real car, all controllers (wheel, pedals, joystick, and monitor) move along with the seat in our full motion simulators.
This design and engineering allow for the effective simulation of g-forces through muscle pressure points. By opting for the best simulator platform, you future-proof your gaming experiences.
The HERO 6 offers true 6 degrees of freedom that can simulate heave, roll, pitch, and yaw with separate front and rear roll centers for body roll and yaw, along with true side-to-side and front-to-back motion. Accelerations are truly simulated, not just by tilting the seat or cockpit, and understeer, oversteer, and drifts all feel different as they should. It’s unmatched by anything else on the market.
COMPATIBILITY
Windows
PS
XBOX
VR
COMPATIBLE GAMES
Experience the Thrill of Racing and Gaming in DOF Reality 6-Axis HERO (H6)
FREQUENTLY ASKED QUESTIONS
DOF Reality ready-to-play packages include the following:
- Rigid metal rig designed for normal and F1 poses (except M2 models).
- Mounts for wheel, pedals, shifter (except M2 models).
- Mounts for a seat or sliding rails.
- Integrated power drive motors.
- 110/220v control unit with USB.
- SimRacingStudio license.
- Quick assembly tools.
Yes.
Consoles operate within a closed, controlled, and proprietary platform. Currently, only a select few games, such as Grand Turismo 7, Sport, PCARs, PCARs2, AC, F1, Forza Motorsport 7, and Forza Horizon 4 and 5, send motion data from consoles using UDP over the network (as demonstrated in this video).
For these games, we offer a MagicBox solution priced at $200. To enable motion in all other games, we are developing MagicWheel and MagicPedals, which will be available in two months.
Seat choice is a matter of personal preference. Almost any bottom-mount car or gaming seat works. We don’t sell seats; you can use your preferred seat or find affordable options locally. We recommend a Bucket Racing Seat to prevent falling during G-forces, and a four-six point harness is optional. A lighter seat enhances platform performance. For options, check eBay (Option 1, Option 2, Option 3), Amazon, or JEGS.
Real certified racing seats can be quite expensive, Ask for seat that is NOT certified for racing – they work the same way and are way cheaper than certified ones. In local classifieds, check for single racing seat. Finally, check the local racing community, they will be happy to help.
The best will be to use standard bottom mount car seat with sliders/rails (as in real car). It provides you the opportunity for quick adjustments as well.
Platform weight 130 – 220 lbs (60-100kg).
In order to deliver it to your door and ease of transportation all platforms are shipped in two boxes.
Our platforms require assembly. It will make your platform more valuable as well as custom-tailored build for your preferences.
It is a simple process that you will enjoy!
We are selling the complete platform. Each individual system is assembled, tested, and tuned. They’re disassembled before shipping, so all you need to do is put it together, install provided motion software on your PC, and connect our controller via USB! All parts and tools needed for quick assembly of the platform are included.
