ClubSport Universal Hub for Xbox One
Use the Podium Button Module Endurance with your compatible ClubSport Universal Hub for Xbox One using the included adaptor.
FANATEC PODIUM BUTTON MODULE ENDURANCE
$249.99
FANATEC PODIUM BUTTON MODULE ENDURANCE
$249.99
GT3-CLASS CONTROL

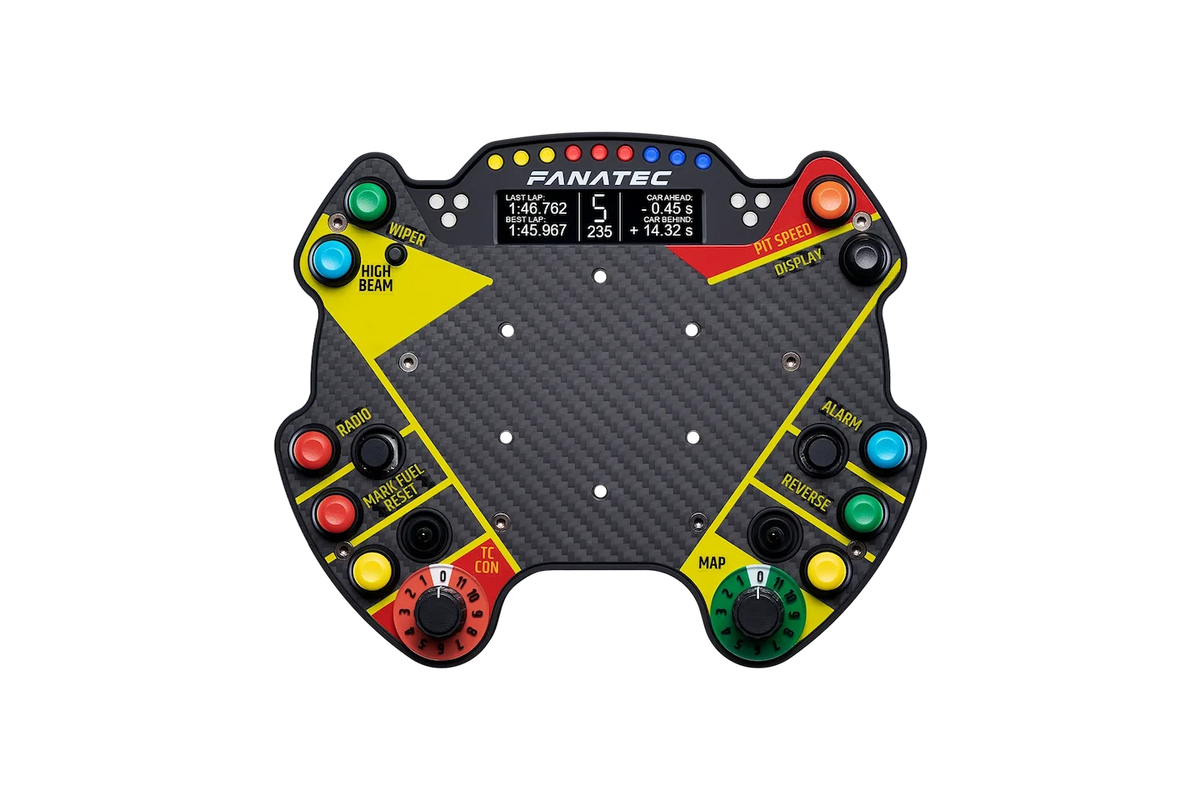

BUILD A FULL-FEATURED ENDURANCE STEERING WHEEL
Transform your compatible Fanatec setup with the Podium Button Module Endurance, a full-scale replica of a GT3-class endurance racing button module.
Built around a real carbon fibre front plate with internal metal reinforcements and a rubber-coated, glass fibre-reinforced backplate, the module combines lightweight construction with stability and extensive functionality.
Ten buttons, two 2-way toggle switches, two 12-way multi-position switches, a 7-way FunkySwitch, and a 2-axis analogue joystick put a wide range of controls within reach. The multi-position switches can also operate in Encoder Mode for endless rotation.
A 2.7-inch OLED display supports Intelligent Telemetry Mode, while nine high-intensity RGB RevLEDs and two groups of three RGB FlagLEDs provide visual information around the display. LED behavior can be customized through FanaLab.
Designed for compatible Fanatec Hubs and 6 × 70 mm wheel rims, the Podium Button Module Endurance gives you the controls, telemetry, and motorsport-inspired design needed to build a dedicated endurance racing steering wheel.
Built around a real carbon fibre front plate with internal metal reinforcements and a rubber-coated, glass fibre-reinforced backplate, the module combines lightweight construction with stability and extensive functionality.
Ten buttons, two 2-way toggle switches, two 12-way multi-position switches, a 7-way FunkySwitch, and a 2-axis analogue joystick put a wide range of controls within reach. The multi-position switches can also operate in Encoder Mode for endless rotation.
A 2.7-inch OLED display supports Intelligent Telemetry Mode, while nine high-intensity RGB RevLEDs and two groups of three RGB FlagLEDs provide visual information around the display. LED behavior can be customized through FanaLab.
Designed for compatible Fanatec Hubs and 6 × 70 mm wheel rims, the Podium Button Module Endurance gives you the controls, telemetry, and motorsport-inspired design needed to build a dedicated endurance racing steering wheel.
Real Carbon Fibre Front Plate
Real carbon fibre and internal metal reinforcements provide a lightweight, stable construction for your endurance steering wheel.
Extensive Control Layout
Access 10 buttons, two 2-way toggle switches, two 12-way multi-position switches, a 7-way FunkySwitch, and a 2-axis analogue joystick.
RGB RevLEDs and FlagLEDs
Nine high-intensity RGB RevLEDs and six RGB FlagLEDs provide visual information around the OLED display.
2.7-Inch OLED Display
View supported telemetry, Tuning Menu information, and Intelligent Telemetry Mode layouts on the integrated 256 × 64 OLED display.
Intelligent Telemetry Mode
Switch between supported telemetry layouts for detailed vehicle information, with Legacy Mode available when ITM is not supported.
GT3-Class Wheel Integration
Mount the module between a compatible Fanatec Hub and supported 6 × 70 mm wheel rim to build your endurance steering wheel.
Product Details
ENDURANCE-GRADE CONTROL AND TELEMETRY
| Product | Fanatec Podium Button Module Endurance |
|---|---|
| Product Type | Steering Wheel Button Module |
| Design | Full-Scale GT3-Class Endurance Button Module Replica |
| Front Plate | Real Carbon Fibre |
| Internal Reinforcement | Metal |
| Backplate | Rubber-Coated Glass Fibre-Reinforced Construction |
| Weight | 410 g |
| Buttons | 10 |
| Toggle Switches | 2 × 2-Way |
| Multi-Position Switches | 2 × 12-Way |
| Multi-Position Switch Mode | Encoder Mode with Endless Rotation |
| FunkySwitch | 1 × 7-Way Joystick / Encoder |
| Analogue Joystick | 1 × 2-Axis |
| RevLEDs | 9 × High-Intensity RGB LEDs |
| FlagLEDs | 6 × High-Intensity RGB LEDs in Two Groups of Three |
| LED Customization | User-Defined via FanaLab |
| Display | 2.7-Inch OLED |
| Display Resolution | 256 × 64 |
| Intelligent Telemetry Mode | Supported |
| Tuning Menu | Supported Through OLED Display |
| Clutch Bite Point Display | Supported with Podium Advanced Paddle Module |
| Button Caps | Detachable |
| Button Cap Compatibility | Fanatec Xbox, PS4 and Racing Style Button Caps |
| Hub Connection | Reversible DataPort-C |
| Wheel Rim Mounting Pattern | 6 × 70 mm |
| Hub-to-Rim Extension | 11 mm |
| Compatible Hubs | ClubSport Universal Hub for Xbox One, ClubSport Universal Hub V2, ClubSport Universal Hub V2 for Xbox, Podium Hub |
In The Box
YOUR ENDURANCE BUTTON MODULE PACKAGE
Your Podium Button Module Endurance includes the button module, mounting hardware, DataPort-C adapter, Porsche-style sticker set, and Quick Guide. A compatible Fanatec Hub is required for operation and is not included.
1
1x Podium Button Module Endurance
2
6x M5 × 25 mm Bolts
3
1x DataPort-C to RJ12 Adaptor
4
1x Porsche-Style Sticker Set
5
1x Quick Guide
FANATEC ECOSYSTEM
BUILD YOUR GT3-CLASS ENDURANCE SETUP
The Podium Button Module Endurance requires a compatible Fanatec Hub and is designed for wheel rims using a 6 × 70 mm mounting pattern. Compatible wheel rims include the listed Porsche, R300, and ClubSport 320 models. Some additional rims may physically fit but are not recommended because of control clearance. The module extends the distance between the Hub and Wheel Rim by 11 mm. For third-party wheel rims, check the sizing template before installation.
ClubSport Universal Hub V2
Connect the Button Module Endurance to the ClubSport Universal Hub V2 for a compatible Fanatec steering wheel setup.
ClubSport Universal Hub V2 for Xbox
Combine the module with the ClubSport Universal Hub V2 for Xbox for compatible Xbox operation.
Podium Hub
Pair the Podium Button Module Endurance with the Podium Hub to build a full-featured endurance steering wheel.
Podium Wheel Base DD1
Compatible when the Button Module Endurance is connected through a supported Fanatec Hub.
Podium Wheel Base DD2
Use the Button Module Endurance with the DD2 through a compatible Fanatec Hub.
Podium Wheel Base DD1 PS4™
Compatible through a supported Fanatec Hub.
ClubSport Wheel Base V2.5
Compatible with the Podium Button Module Endurance through a supported Fanatec Hub.
ClubSport DD Wheel Base
Compatible when used with a supported Fanatec Hub.
ClubSport DD+ Wheel Base
Use the Button Module Endurance with your ClubSport DD+ through a compatible Fanatec Hub.
CSL DD Wheel Base
Compatible when connected through a supported Fanatec Hub.
Gran Turismo DD Pro Wheel Base
Compatible with the Podium Button Module Endurance through a supported Fanatec Hub.
CSL Elite Wheel Base +
Compatible when used with a supported Fanatec Hub.
CSL Elite Wheel Base V1.1
Compatible through a supported Fanatec Hub.
Podium Wheel Rim Porsche 911 GT3 Cup (Suede)
Compatible 6 × 70 mm wheel rim for building a Porsche-inspired endurance steering wheel.
Podium Wheel Rim Porsche 911 GT3 Cup (Leather)
Compatible with the Podium Button Module Endurance.
Podium Wheel Rim R300
Compatible, but the smaller rim diameter creates tight clearance between the Button Module and the base of the rim.
ClubSport Wheel Rim 320
Compatible with the Podium Button Module Endurance.
ClubSport Wheel Rim 320 Alcantara®
Compatible with the Podium Button Module Endurance.
ClubSport Wheel Rim Drift
Physically compatible but not recommended for this Button Module configuration.
ClubSport Wheel Rim GT
Not compatible because of the proximity of the wheel spokes to the module buttons.
PC
Compatible with Windows PC. Available functions depend on game and developer support.
Xbox One and Xbox Series X
S
PlayStation 4 and PlayStation 5
Compatible when used with a PlayStation-licensed Wheel Base. Functionality may depend on console, firmware, OS, and developer support.
Order Fulfillment
Shipping Information
Free Standard Shipping within the United States.
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
CREATE A STUNNING GT3-CLASS STEERING WHEEL USING THE PODIUM BUTTON MODULE ENDURANCE
Designed for both the Podium Hub and ClubSport Universal Hub for Xbox One, the Podium Button Module Endurance offers motorsport-inspired aesthetics and features.
FULL-SCALE REPLICA
Enhance the appearance and functionality of your wheel with this full-scale replica of a GT3-class endurance button module, suitable for the Podium Wheel Rims R911, R911S, and R300.
HIGH-END MATERIALS
Real carbon fibre front plate and internal metal reinforcements for maximum stability, and electronics contained within a rubber-coated, glass fibre-reinforced backplate.
EXTENSIVE FUNCTIONALITY
With 10 buttons, two 2-way toggle switches, a 2-axis analogue stick, 7-way FunkySwitch, and two 12-position switches which can also be configured as endless rotary encoders, you’ll have a wealth of controls at your fingertips.
MULTIPLE INPUTS
Contactless Hall sensors with unlimited lifetime mean that your dual analogue paddles will function with precision and consistency.
MULTIPLE OUTPUTS
The nine high-intensity RGB RevLEDs and six high-intensity RGB FlagLEDs surround the 2.7” OLED display, providing instant information about your vehicle.
INTELLIGENT TELEMETRY MODE
The customisable OLED display offers enhanced display capabilities through Intelligent Telemetry Mode (ITM).
WIDE OLED DISPLAY
Much like the OLED display on the Podium wheel bases, the Podium Button Module Endurance display can show detailed information, including many telemetry data types at once.
MAXIMUM FLEXIBILITY
Switch between five different game telemetry data layouts (manually or triggered by the game). Games without ITM support will automatically run in Legacy Mode.
PODIUM BUTTON MODULE ENDURANCE
VIDEO GUIDE
