Compatible 70 mm Wheel Rims
Build your own Interlock steering wheel using a rim with a 70 mm mounting pattern that meets the required Base Module clearance.
INTERLOCK BASE MODULE
The Modular System. Redefined.
GSI Interlock Base Module
$570.00
GSI Interlock Base Module
$570.00
START ANYWHERE, GO ANYWHERE

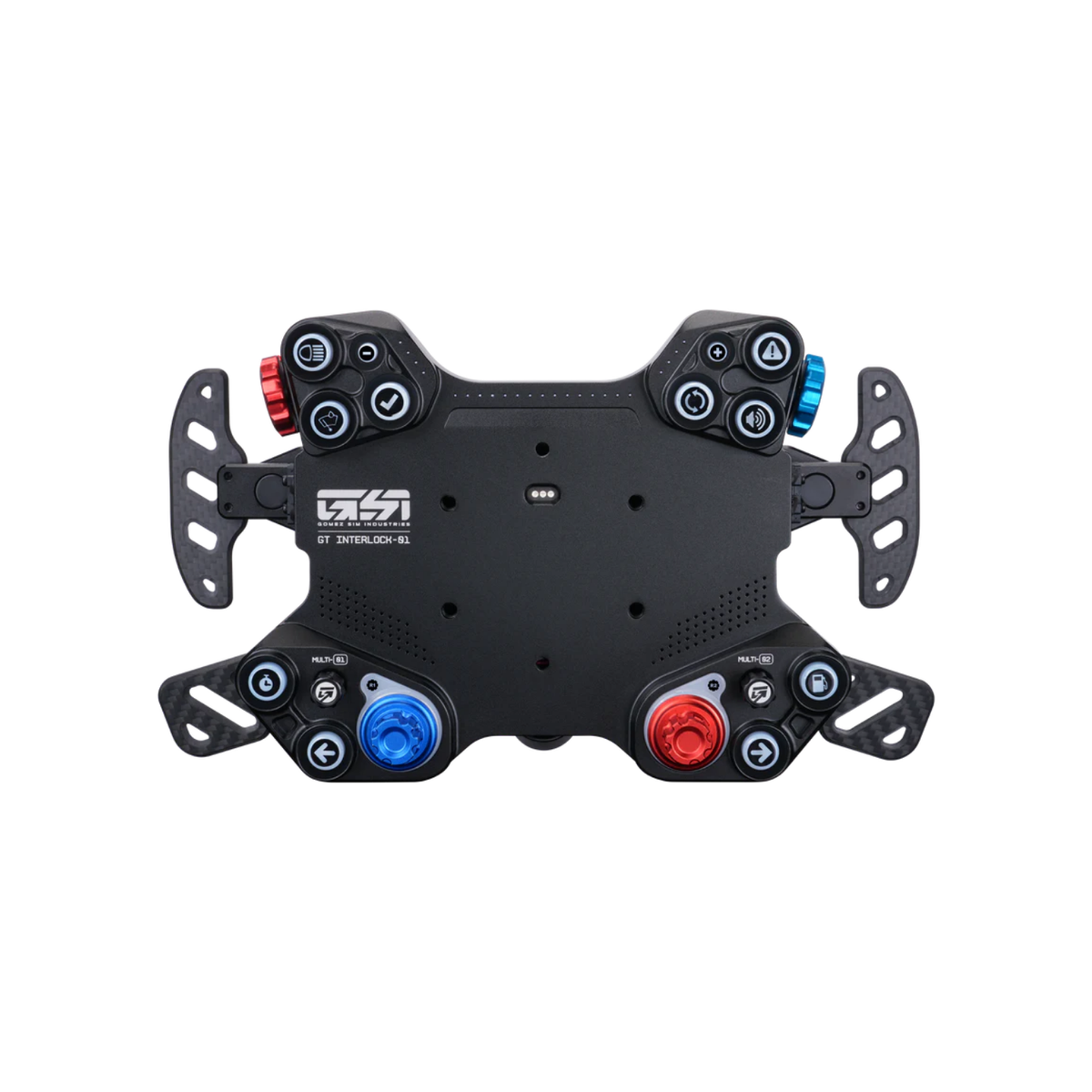

THE MODULAR CORE. BUILD THE WHEEL YOU WANT.
Build your own steering wheel around the GSI Interlock Base Module.
At the heart of the Interlock ecosystem, the Base Module provides a flexible foundation that can be paired with your choice of compatible 70 mm wheel rim. Add N52 paddle shifters, HSE clutches, or the optional LED Matrix as your setup evolves.
The control system provides 42 mappable inputs through 12 RGB push-buttons, two thumb encoders, two high-precision 5-way encoders, and two 7-way switches.
Integrated RGB illumination supports buttons, encoders, and a 4 + 15 + 4 telemetry LED layout. Add the optional LED Matrix for customizable gear, flag, and alert animations when using a compatible rim with a 55 mm horn opening.
Built around GSI's simOS architecture, the Interlock system is designed to intelligently manage responsiveness, power, and data while remaining open to future upgrades.
At the heart of the Interlock ecosystem, the Base Module provides a flexible foundation that can be paired with your choice of compatible 70 mm wheel rim. Add N52 paddle shifters, HSE clutches, or the optional LED Matrix as your setup evolves.
The control system provides 42 mappable inputs through 12 RGB push-buttons, two thumb encoders, two high-precision 5-way encoders, and two 7-way switches.
Integrated RGB illumination supports buttons, encoders, and a 4 + 15 + 4 telemetry LED layout. Add the optional LED Matrix for customizable gear, flag, and alert animations when using a compatible rim with a 55 mm horn opening.
Built around GSI's simOS architecture, the Interlock system is designed to intelligently manage responsiveness, power, and data while remaining open to future upgrades.
Modular Interlock Foundation
Start with the Base Module and add your compatible rim, paddle shifters, clutches, or LED Matrix as your setup evolves.
42 Mappable Inputs
Configure 12 push-buttons, two thumb encoders, two 5-way encoders, and two 7-way switches around your driving style.
Expandable RGB Telemetry
Integrated lighting supports RGB buttons, RGB encoders, and a 4 + 15 + 4 telemetry LED layout.
Compatible Rim Support
Pair the Base Module with a compatible wheel rim using a 70 mm bolt pattern that meets the required clearance.
Optional LED Matrix
Add the LED Matrix for customizable gear, flag, and alert animations when using a compatible rim with a 55 mm horn opening.
simOS Architecture
GSI's custom firmware manages responsiveness, power, and data while integrating with the simOS app.
Product Details

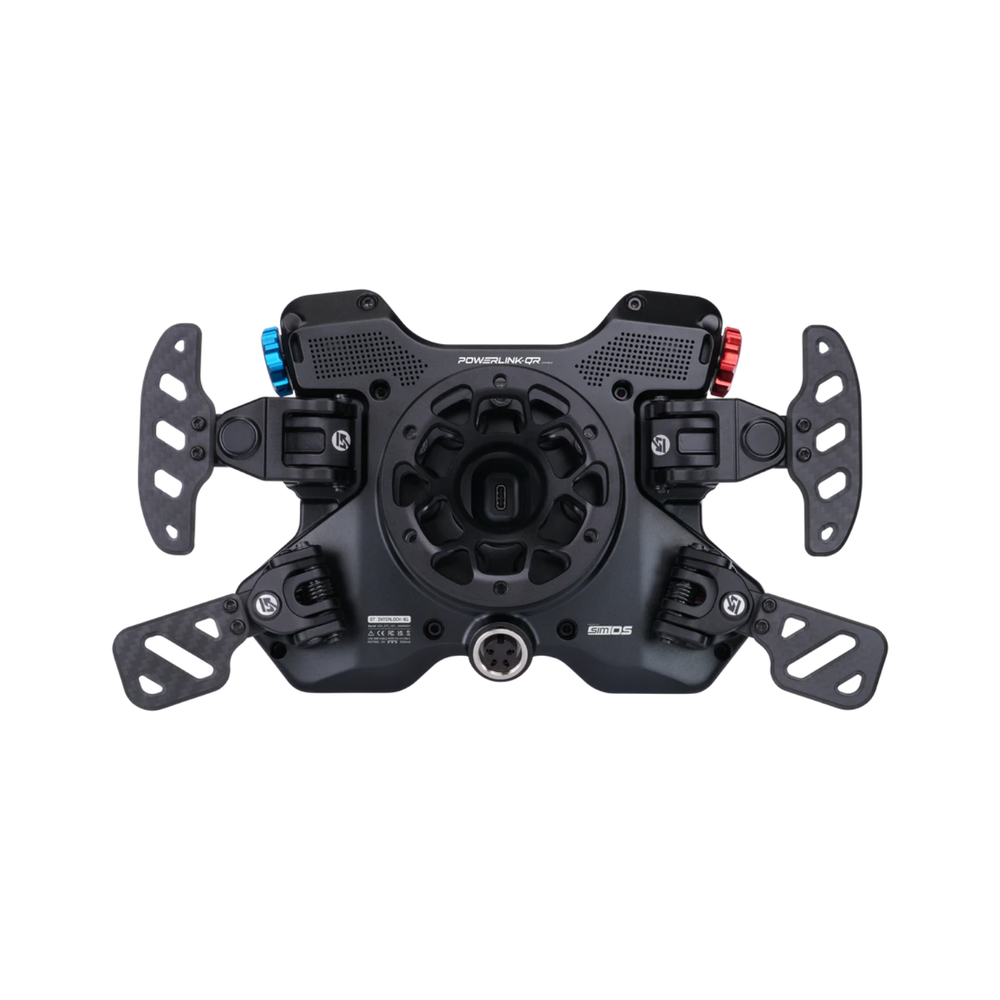

MODULAR CONTROL BUILT TO EXPAND
| Product | GSI Interlock Base Module |
|---|---|
| Product Type | Modular Steering Wheel Base Module |
| Platform | Windows PC |
| Mappable Inputs | 42 |
| System Input Capacity | Up to 44 Total Inputs |
| Push Buttons | 12 |
| Push Button Activation Force | 500 gf |
| Thumb Encoders | 2 |
| 5-Way Encoders | 2 |
| 5-Way Encoder Torque | 6.5 NĀ·cm |
| 7-Way Switches | 2 |
| Available Shifters | N52 Shifters |
| Available Clutches | HSE Clutches |
| Top Paddles | No |
| RGB Buttons | Yes |
| RGB 5-Way Encoders | Yes |
| Telemetry LED Layout | 4 + 15 + 4 |
| Addressable RGB LEDs | Up to 90 with Supported Configuration |
| LED Matrix | Optional |
| LED Matrix Rim Requirement | Compatible Rim with 55 mm Horn Opening |
| Rim Mounting Pattern | 70 mm PCD, 6 Ć M5 |
| Rim Requirement | Must Meet Interlock Base Module Clearance Requirements |
| Front Plate | Matte Brushed Aluminium |
| Body Construction | Aluminium Unibody |
| Button Material | Scratch-Resistant Polycarbonate |
| Rotary Knob Customization | Yes |
| Label Text and Color Customization | No |
| Button Layout Customization | No |
| Firmware Architecture | GSI simOS |
In The Box
YOUR INTERLOCK FOUNDATION
Your Interlock Base Module package includes the modular Base Module and GSI "Spec 3" coiled USB cable. A wheel rim, paddle shifters, clutches, LED Matrix, Wheel Base-specific quick release, adapters, and hubs are not listed among the included package contents.
1
Interlock Base Module
2
GSI "Spec 3" Coiled USB Cable
MODULAR PC ECOSYSTEM
CHOOSE YOUR RIM. CHOOSE YOUR WHEEL BASE.
The GSI Interlock Base Module is designed for Windows PC and can be paired with compatible wheel rims using a 70 mm bolt pattern, provided the rim meets GSI's clearance requirements. If adding the optional LED Matrix, the wheel rim must also have a 55 mm horn opening. Wheel Base connection requirements vary by ecosystem. Some platforms require a specific quick release, hub, or adapter. For USB connectivity, GSI recommends GSI Coiled Cable ā Powered USB Hub ā PC. USB extension cables are not recommended.
LED Matrix Rim Requirement
When adding the optional LED Matrix, use a compatible rim with a 55 mm horn opening.
Simucube
Use the Interlock Base Module with a compatible Simucube Wheel Base on Windows PC.
VRS DirectForce Pro
Compatible with the VRS DirectForce Pro for Windows PC sim racing setups.
Fanatec DD Bases
Connect to compatible Fanatec Direct Drive Wheel Bases through an SRM Fanatec Emulator Hub or Fanatec Podium Hub.
Asetek
Connect to a compatible Asetek Wheel Base using the Asetek Invicta Quick Release.
Moza
Connect to a compatible Moza Wheel Base using a Moza Quick Release.
Simagic
Connect to a compatible Simagic Wheel Base using a Simagic Quick Release.
Most 8 Nm+ Wheel Bases
Designed for use with most compatible Wheel Bases rated at 8 Nm or higher.
Windows PC
The Interlock Base Module is specified for Windows PC operation.
Powered USB Hub
Recommended connection is GSI Coiled Cable to Powered USB Hub to PC.
USB Extension Cables
USB extension cables are not recommended.
Order Fulfillment
Shipping Information
We ship from Huntington, CA.
Orders placed before 11:00 AM PST will ship the same day, while orders placed after 11:00 AM PST will ship the next business day.
LED MATRIX
Fully customizable for gear, flag, and alert animations, bringing dynamic visual feedback directly into your races.
POWER-LINK QR CAPABLE
Connect and mount your passthrough quick release of choice via USB-C to go fully wireless on your wheelbase.
START ANYWHERE, GO ANYWHERE
No matter where you begin, every interlock can evolve into any other. Go fully custom with a compatible third party rim.
POWER-LINK QR READY
Since the beginning, weāve pushed boundaries to create the ultimate sim racing products. The Interlock sets a new foundation for the future, built around our latest electronics and modular design.
Itās already prepared for our upcoming GSI Powerlink-QR, our next-generation passthrough QR that provides both power and data, with a conventionally placed USB-C port beneath the hub for effortless connectivity. The Interlock is ready not only for the GSI Powerlink-QR but also for any passthrough QR that uses a USB-C connectionāno need to open the wheel to adapt. It also features dynamic power switching, intelligently recognizing whether itās connected through the passthrough QR or the coiled cableāgiving you seamless flexibility and complete freedom in how you connect.
OUR BEST ROTARY ENCODERS
The Interlock uses our best and most tactile rotary encoders to date for the most satisfying and precise feedback.
INTEGRATED THUMB ENCODERS
Standard all across version of interlock, map crucial car and simulator controls for easy access when you need them.
simOS Architecture
GSI wheels run on simOS, our custom firmware optimized specifically for sim racing.
It includes features like predictive algorithms to optimize responsiveness and intelligently manage power and data, as well as a suite of useful features that integrate directly with the simOS app.
GSI INTERLOCK BASE MODULE
UNIQUE FEATURES
MULTIPLE RIM OPTIONS
Designed for performance and seamless integration. Use your own to make it fully custom.
UP TO 44 TOTAL INPUTS
The Interlock system unlocks an incredible amount of versatility, giving you the freedom to map every control exactly to your driving style.
HIGH-PRECISION ROTARY ENCODERS
Our most tactile encoders yet at 6.5 Ncm. Each adjustment is crisp, responsive, and built for precise and satisfying control.
UP TO 90 RGB LEDS
Illuminated buttons, encoders, and telemetry. Add the LED Matrix for additional telemetry and next-level visuals.
12 RGB LED PUSH-BUTTONS
Tactile and responsive with engagement at 500 gram force and 2 fully addressable RGB LEDs per button.
2 SEVEN-WAY SWITCHES
Multi-function control right at your thumbs for menus, car settings, and black boxes.
2 THUMB ENCODER
Perfectly positioned where your hands naturally rest, allowing seamless adjustments without distraction.
4 + 15 + 4 TELEMETRY LEDS
Customizable telemetry indicators keep RPM, flags, traction, and ABS data directly in your line of sight.
LIGHTWEIGHT BUILD
Engineered to maximize strength while minimizing weight ā giving you sharper feedback from your wheelbase.
