• Euro 2 pallet dimension 1200 mm x 800 mm
• Generate precise real-time vibrations up to 100 Hz
• Ready to work in a few minutes
Extremely quiet and smooth operation
• High performance devices with minimal power budgetSmall footprint and lightweight body
• Full and native hardware and software integration with the VR headset
• Delivered with software management package and plugins.
• Simulation software support

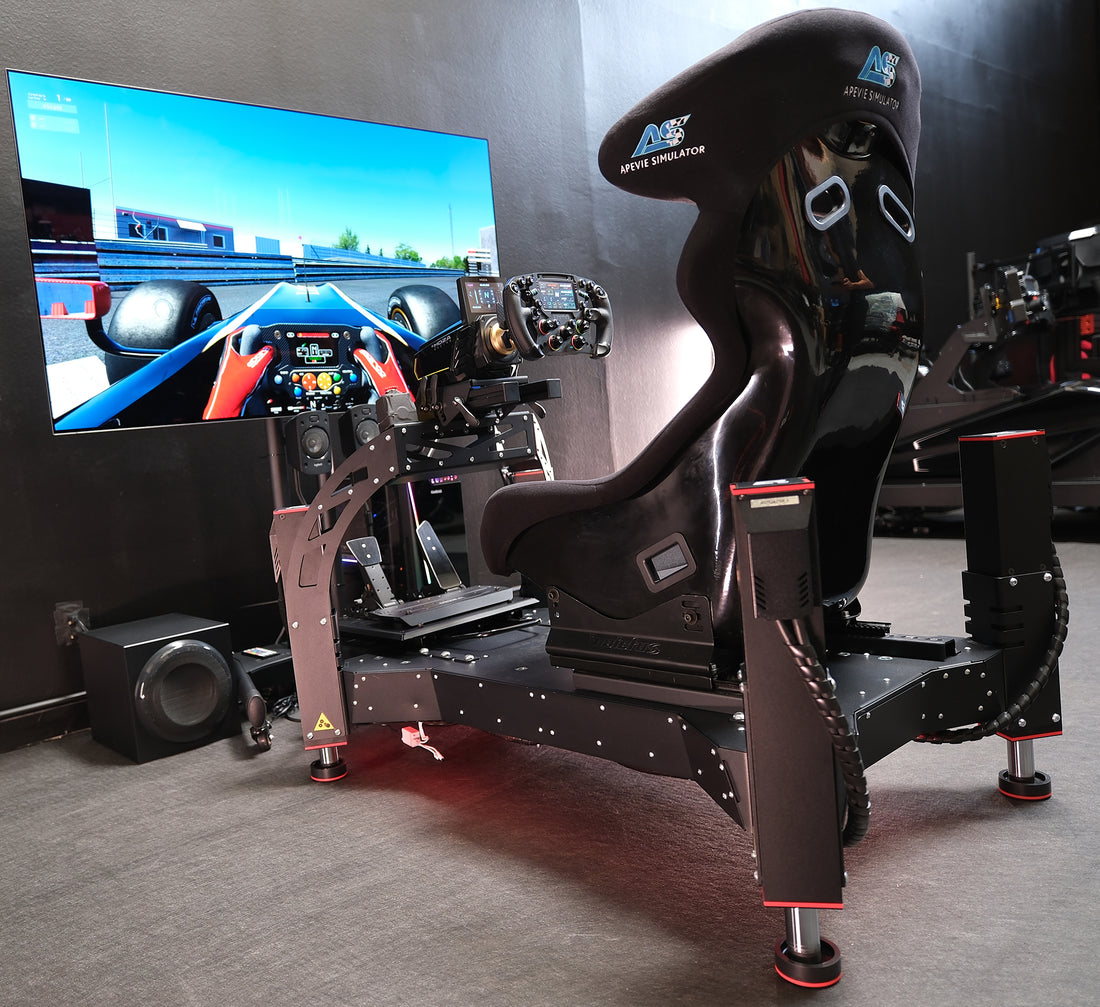

QS-CH1 FULL SET

2 x QS-220-PL motion set:
4x QS-L1 – linear actuator with stabilization plate
2x QS-SB2 – power cabinet (control module)
1x QS-SBML-2 – motion lock cable (up-link/down-link) – 2 meters long
1x Ethernet RJ-45 cable – 2 meters long
1x Power cable

1x QS-MC6 controller set:

1x M10 – USB controller
1x QS-SBML-1 – motion lock with additional cable
1x QS-MBT-1 – M-BUS terminator (RJ45 plug with resistor)
1x USB cable (mini)
1x Ethernet RJ-45 cable – 3 meters long

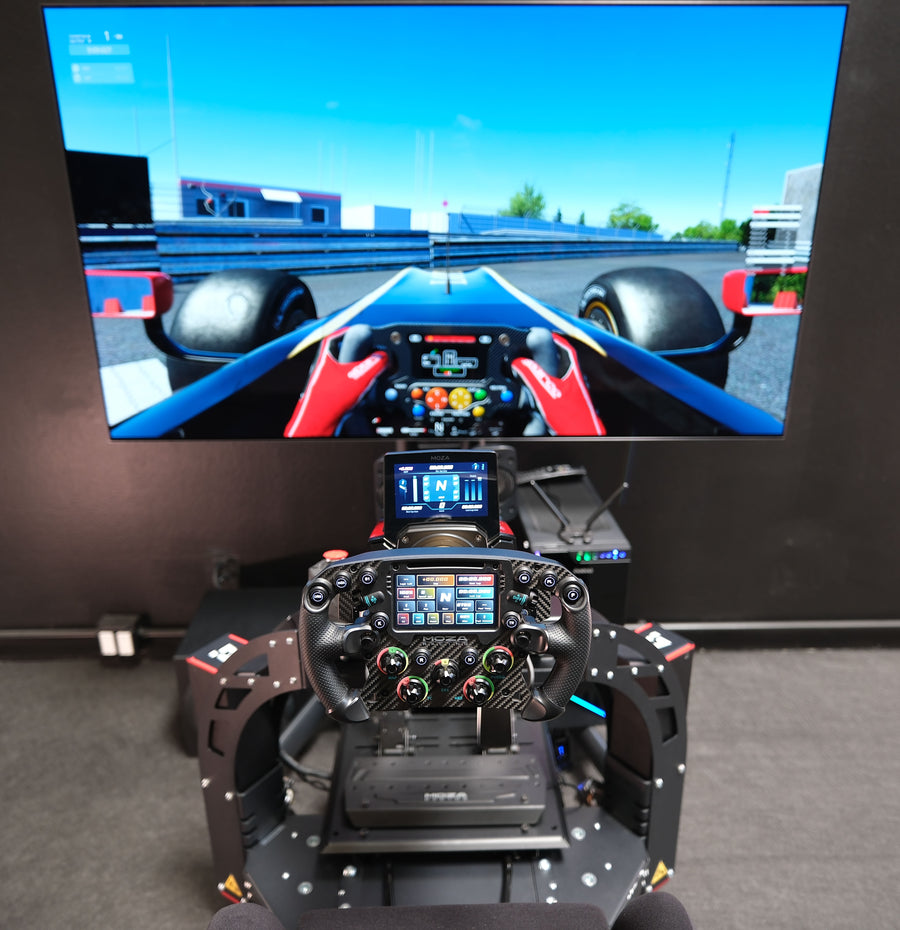

Dedicated, stiff rig with attaching points and mounting brackets:

2x mounting bracket: power cabinet
4x mounting bracket: actuator

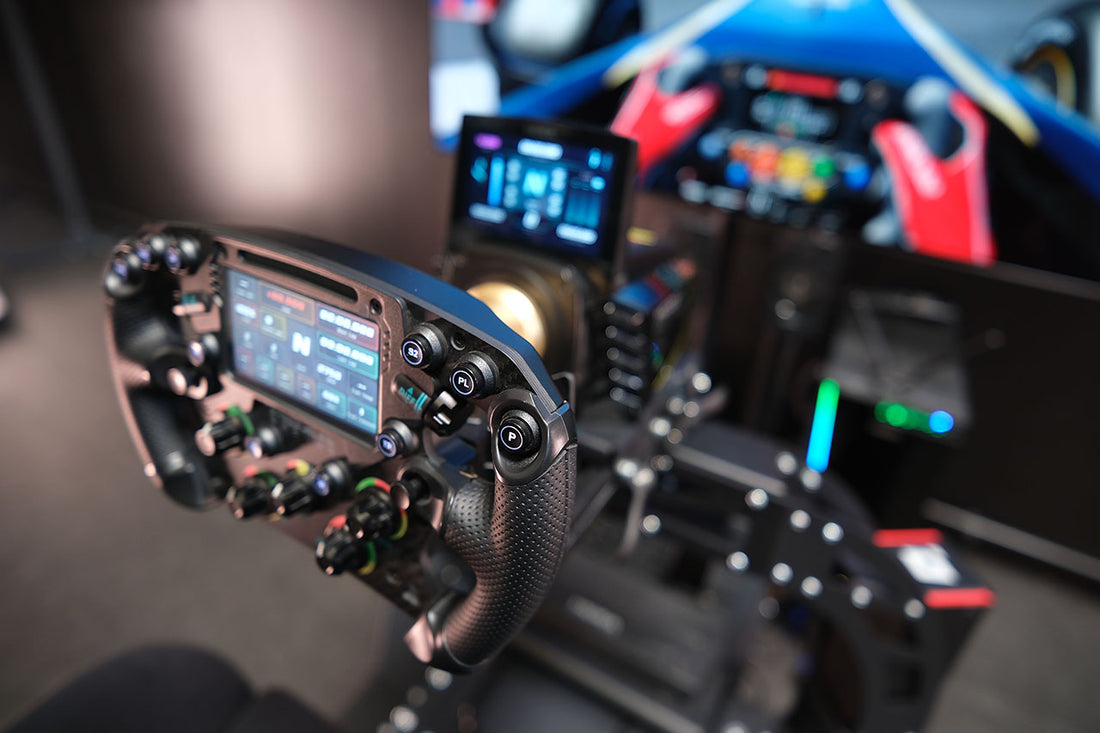

1x mounting bracket: steering wheel with adjustment
1x mounting bracket: pedals
1x mounting bracket: racing seat with adjustment

QS-CH1 BASE

1x motion floor with mounting brackets:

2x mounting bracket: power cabinet
4x mounting bracket: actuator
1x mounting bracket: steering wheel with adjustment
1x mounting bracket: pedals
1x mounting bracket: racing seat with adjustment

QS-CH1 FULL SET

Architecture: 3DOF
Actuator stroke: 100 mm | 3.93 in
Vibration frequency range: 0-100 Hz
Maximum control frequency: 1000 Hz

Maximum velocity:
◦ Heavy Duty Mode (115/230V): 300 mm/s

Maximum acceleration:
◦ Heavy Duty Mode (115/230V): 0.4G*
*value of acceleration is limited for safety reasons

QS-CH1 SYSTEM PERFORMANCE

Heave: – 50 mm, 50 mm
Roll: -7.9°, 7.9°
Pitch: -5.1°, 5.1°

QS-CH1 DIMENSIONS

Total length: 1426 mm | 56 in
Total width: 856 mm | 33.7 in
Total height: 763 mm | 30 in

QS-CH1 PAYLOAD

Gross moving load: 300kg

POWER REQUIREMENTS

Power supply requirements: 115/230 VAC Single Phase

Average power consumption in 3DOF configuration:
◦ Q-Mode: 260W (230V)
◦ Performance Mode: 280W (230V), 270W (115V)
◦ Heavy Duty Mode: 436W (230V), 462W (115V)

Peak current for breaker specification in 3DOF configuration:
◦ Q-Mode: 5.17A (230V)
◦ Performance Mode: 4.55A (230V), 7.35A (115V)
◦ Heavy Duty Mode: 5.88A (230V), 9.89A (115V)

Connection: USB

Even most advanced hardware is nothing without good software. QubicManager powered by Motion Systems company is professional and specialized software for the platform and is click and play compatible with all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles.

Over 80 integrated and supported racing and flight games.
