Qubic System Seat Belt Tensioner QS-BT1
Qubic System Seat Belt Tensioner QS-BT1
QS-BT1
Driven by the same technology as breathtaking QS-220, QS-BT1 is a multi-purpose, dual channel, direct drive seat belt tensioner that increases sim racing immersion like no other device in its class and price range. It can complete not only force feedback offered by direct drive wheels, but also move up the level of overall experience offered by already really immersive QS motion platforms and if needed, it can even act as a standalone independent device.
Simulation of braking, lateral accelerations, high speed cornering, wheel locks and traction loss are among list of primary features of QS-BT1. Asymmetrical engine vibrations and road surface effects like rumble strips are also available for games that support them and despite being designed mainly for sim racing application, with its 200 N of force per channel, QS-BT1 can also successfully be used in flight simulators, to make you feel gigantic forces during high G maneuvers.
ENHANCING CAR BRAKING SIMULATION EXPERIENCE
QS-BT1 significantly enhances the level of realism, providing you with an unparalleled opportunity to deeply engage in the intricate dynamics of braking.
This innovative device transforms car simulations into an exhilarating and exceptionally authentic experience, setting a new standard for the intensity and authenticity of virtual driving.
ADVANCED STEERING SIMULATION WITH DUAL TENSIONER TECH
The advanced technology of the dual-channel seat belt tensioner enables precise steering motion simulation, creating a dynamic and realistic experience when turning.
Feel subtle reactions on corners and have full control over the steering wheel, just like in a real vehicle.
VIBRATION TO INCREASE IMMERSION
QS-BT1 is an advanced seat belt tensioner equipped with innovative engine vibration technology. With this device, you can literally feel the pulsation of the engine power, adding realism and intensity to their virtual driving experience.
Engine vibrations are precisely tailored to reflect changing road conditions, responding to dynamic accelerations and gear shifts. QS-BT1 allows you to fully immerse themselves in simulated automotive emotions, delivering unforgettable sensations for both racing simulator enthusiasts and those seeking realistic automotive experiences.
GEAR SHIFTING REALISM
QS-BT1 goes beyond traditional simulation experiences by introducing the sensation of gear shifting. Through its sophisticated technology, you can distinctly feel the transition between gears as the seat belts respond accordingly to gear changes.
This innovative integration enhances the overall realism of the driving simulation, providing you with tactile feedback that replicates the nuanced dynamics of a real vehicle, making the virtual driving experience even more immersive and engaging.
COMPATIBILITY WITH OTHER DEVICES
QS-BT1 alone is not able to create sensation of forward acceleration and high speed cruising, especially when driving electric vehicle, where engine vibrations are absent and there is only road noise. Even with all effects tuned up, there is a feeling that something is still missing on long straight, in formula car, driving 300 km/h. Fortunately QS-BT1 is compatible with all motion platforms that are powered by Motion Systems technology (QS, PS, HS [1]) and also with our simple to build, fully OpenSource, DIY WindSim which can easily demonstrate you what it is like to drive a car without a roof… in winter… wearing a wig.
BEYOND 4 WHEELS
Being jet fighter pilot is your dream? You want to experience the overload (G) that pilot feels?
QS-BT1, with its astonish 41 kg/90 lbs of sustained pulling force, allows to experience and feel differences between 1G, 2G, 3G or even 9G. Positive G, negative G or both, everything depends on your preferences, sky it the limit, literally. Centrifugal forces, engine vibrations, cannon fire, missiles launch or flares dispose [2] – all of them generate a accurate feedback through QS-BT1 and immerse you deeply into the simulation. The missing factor that binds your body to the seat, the stress you feel on your body during tight maneuvers, making you wonder if you really wish to repeat the same maneuver, are all finally there to make the gap between reality and the simulation once again smaller.
- Powerful Performance: 321W rated power with 4A/115VAC and 2A/230VAC power source.
- Dual-Channel Capability: Two independent channels for a versatile and dynamic simulation experience.
- Advanced Protection: Class 1 protection for enhanced safety during operation.
- Versatile Connectivity: USB interface for seamless integration with Windows PC.
- Pulling Force: 20.5kg/45lbs/200N per channel, providing realistic feedback.
- Multifunctional RGB: Illuminated with customizable RGB lighting for a visually immersive experience.
- Compact and Lightweight: Streamlined dimensions and device weight for practical use.
- Motion Platforms Compatibility: Compatible with QS, PS, HS motion platforms for extended versatility and most cockpits available on the market.
- Effect Diversity: Supported effects vary based on the specific game in use.
- User-Friendly Setup: Maximum length of USB and Motion-Lock cables at 3m for flexible positioning.
Included:
- Main unit (QS-BT1)
- USB cable
- External power supply with power cord
- 2x Low friction inserts for seat belts slots
- Universal mounting adapter for aluminium cockpits with necessary hardware
- Motion-Lock jumper + interlink cable
Not included:
- Seat belts
- Cockpit
- Bucket seat
- Motion-Lock remote switch (sold separately)
- Dedicated adapter for other cockpits (sold separately)
- Power Source: 4A/115VAC, 2A/230VAC
- Rated Power: 321 W
- Inrush Current: 20A/115VAC, 40A/230VAC
- Protection Class: 1
- Interface: USB
- Number of Independent Channels: 2
- Pulling Force: 20.5 kg/45 lbs/200 N per channel
- Storage Temperatures: +5°C to +40°C
- Full Performance Temperatures: +5°C to +35°C
- Computer Compatibility: Windows PC
- Supported Effects: Depends on Specific Game
- Multifunctional RGB
- Maximum Length of USB Cable: 3m
- Maximum Length of Motion-Lock Cable: 3m
- Motion Platforms Compatibility: QS, PS, HS [1]
MAIN DEVICES DIMENSIONS:
- Main Dimensions: 561 x 99 x 138 mm/22.13 x 3.90 x 5.43 in
- Main Device Weight: 12 kg/26.46 lbs
- Power Supply Weight: 2.8 kg/6.17 lbs
PACKAGING DETAILS:
- Packing Box Dimensions: 660 x 255 x 180 mm/25.98 x 10.04 x 7.09 in
- Packing Box Weight: 18kg/39 lb
[1] For seat movers application, QS-BT1 can be installed only to the motion platform’s top frame, close to pivot point and it will reduce allowed user weight.
QubicManager powered by Motion Systems company is professional and specialized software for the platform and is click and play compatible with all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles.
Download User Manual
We ship from Huntington, CA. Orders placed before 11am PST will ship the same day, while orders placed after 11am will ship the next business day.
Enhancing Car Braking Simulation Experience
QS-BT1 significantly enhances the level of realism, providing you with an unparalleled opportunity to deeply engage in the intricate dynamics of braking.
This innovative device transforms car simulations into an exhilarating and exceptionally authentic experience, setting a new standard for the intensity and authenticity of virtual driving.
Advanced Steering Simulation with Dual Tensioner Tech
The advanced technology of the dual-channel seat belt tensioner enables precise steering motion simulation, creating a dynamic and realistic experience when turning.
Feel subtle reactions on corners and have full control over the steering wheel, just like in a real vehicle.
Vibration to increase immersion
QS-BT1 is an advanced seat belt tensioner equipped with innovative engine vibration technology. With this device, you can literally feel the pulsation of the engine power, adding realism and intensity to their virtual driving experience.
Engine vibrations are precisely tailored to reflect changing road conditions, responding to dynamic accelerations and gear shifts. QS-BT1 allows you to fully immerse themselves in simulated automotive emotions, delivering unforgettable sensations for both racing simulator enthusiasts and those seeking realistic automotive experiences.
Gear Shifting Realism
QS-BT1 goes beyond traditional simulation experiences by introducing the sensation of gear shifting. Through its sophisticated technology, you can distinctly feel the transition between gears as the seat belts respond accordingly to gear changes.
This innovative integration enhances the overall realism of the driving simulation, providing you with tactile feedback that replicates the nuanced dynamics of a real vehicle, making the virtual driving experience even more immersive and engaging.
Compatibility with other devices
QS-BT1 alone is not able to create sensation of forward acceleration and high speed cruising, especially when driving electric vehicle, where engine vibrations are absent and there is only road noise. Even with all effects tuned up, there is a feeling that something is still missing on long straight, in formula car, driving 300 km/h. Fortunately QS-BT1 is compatible with all motion platforms that are powered by Motion Systems technology (QS, PS, HS [1]) and also with our simple to build, fully OpenSource, DIY WindSim which can easily demonstrate you what it is like to drive a car without a roof… in winter… wearing a wig.
Beyond 4 wheels
Being jet fighter pilot is your dream? You want to experience the overload (G) that pilot feels?
QS-BT1, with its astonish 41 kg/90 lbs of sustained pulling force, allows to experience and feel differences between 1G, 2G, 3G or even 9G. Positive G, negative G or both, everything depends on your preferences, sky it the limit, literally. Centrifugal forces, engine vibrations, cannon fire, missiles launch or flares dispose [2] – all of them generate a accurate feedback through QS-BT1 and immerse you deeply into the simulation. The missing factor that binds your body to the seat, the stress you feel on your body during tight maneuvers, making you wonder if you really wish to repeat the same maneuver, are all finally there to make the gap between reality and the simulation once again smaller.
Takes the immersion to a whole new level!
LITTLE DETAILS THAT MATTER
The seat must be selected correctly to match to your body height and width as the position of the seat belt slots is key for realistic force feedback and immersion.
For optimal overall experience, the belt slots should align horizontally with your shoulder level (indicates as “CORRECT HEIGHT“).
Slots above shoulder level (indicated as ‘TOO HIGH’) reduce the realism and enjoyment of the feedback.
Slots below shoulder level (marked as ‘TOO LOW‘) give a downward pull, suitable for flight simulators to mimic downward G-forces, but not ideal for racing simulations.
NO PAIN, NO GAIN
Does NOT apply to here. The seat belts must be aligned in a way that prevents injuries.
Optimal solution is when the seat belts align directly above your shoulders but do not touch your neck (green dashed line).
Slots set too wide can cause unnatural shoulder pull, reducing realism and force feedback accuracy.
Narrowly set slots (inward red arrows) concentrate force uncomfortably on the chest and may restrict movement, diminishing racing simulation immersion and cause injuries.
HIGH-STRESS SIMULATIONS
Professional racing harnesses are built for extreme conditions, offering superior safety and durability over sim racing harnesses. Their robust construction withstands dynamic movements from the QS-BT1 platform, essential for realistic g-force simulation.
Unlike sim racing harnesses, which wear out faster and offer less safety, professional harnesses feature a secure locking mechanism that prevents accidental release during use, yet allows quick disengagement under load for safety. This balance ensures both security and ease of exit in high-stress simulations and easy of use.
READY FOR 24h ENDURANCE RACING
The QS-BT1 provides extremely quiet operation thanks to the technology used as in the QS-220. As a result, with the near-silent performance, QS-BT1 can be used at late hours without disturbing the rest of the household and is perfect for long endurance races where there is a driver changeover – your racing partner will be able to rest or sleep peacefully next to the running QS-BT1 [3].
LOAD IMPACT ON OPERTATING TIME
The graph shows the result of a synthetic load test with a constant pulling force, which allowed a reliable check of the
cooling properties of QS-BT1.
Such force characteristics do not occur during a typical simulation application.
Customer Reviews

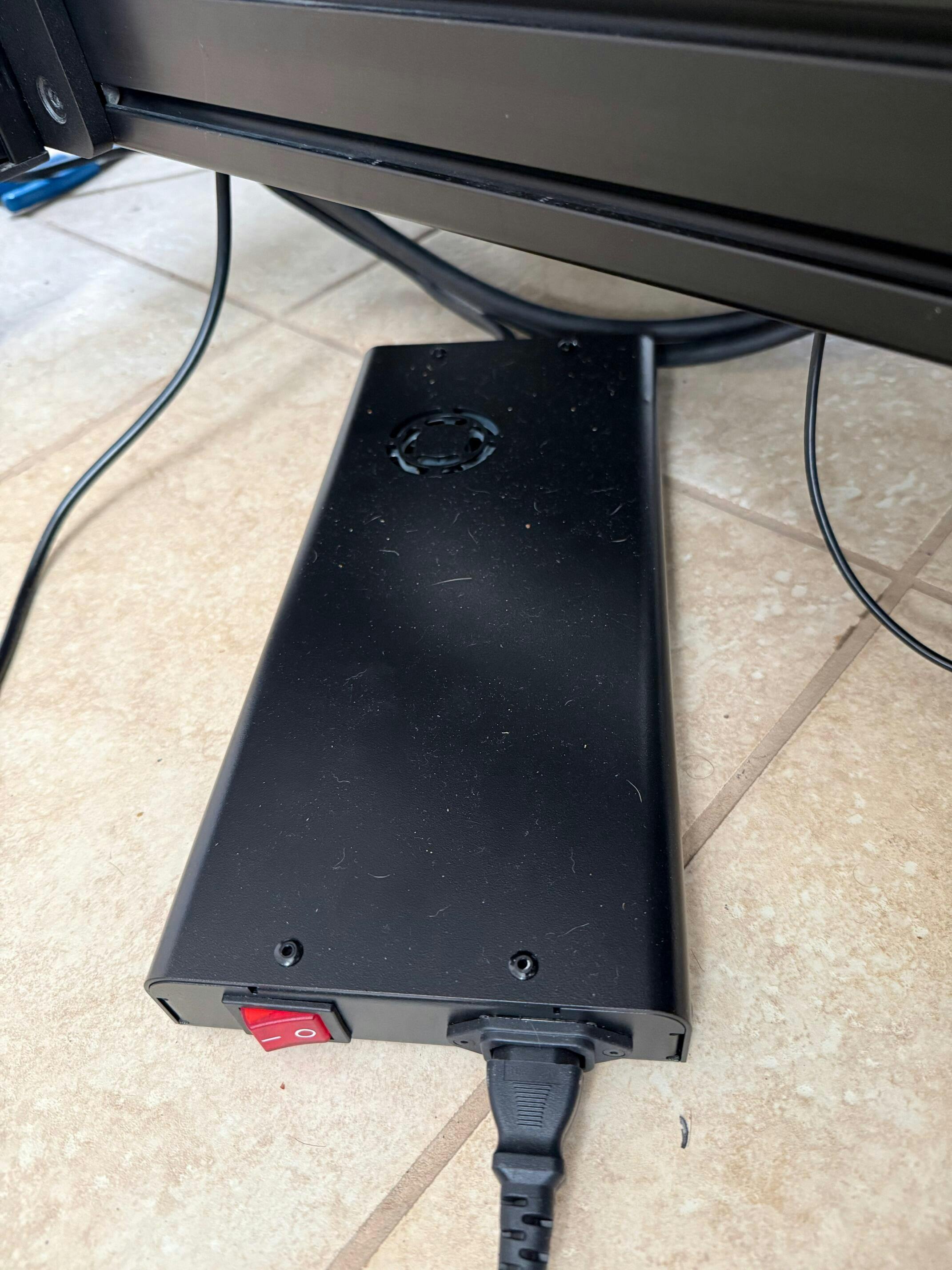

The QS-BT1 works as advertised. This thing is great. looks very cool. It's very responsive and definitely would recommend it. My only complaint is that the power supply brick is loud. I have the QS-220 3DOF and those boxes are super quiet. It's annoying that it's louder than my PC when running a game. I don't understand why not just make the power supply box bigger and add a bigger fan to keep the noise down, because it's loud when you're not running anything and the actuators are dead silent and you hear this turbo running underneath your seat. the actual Belt tensioner is quiet no loud sounds coming from the fans it's just the power supply brick that seems like an oversight
Awesome product and really adds to the Sim Racing. Great Shipping and service too! Thanks.

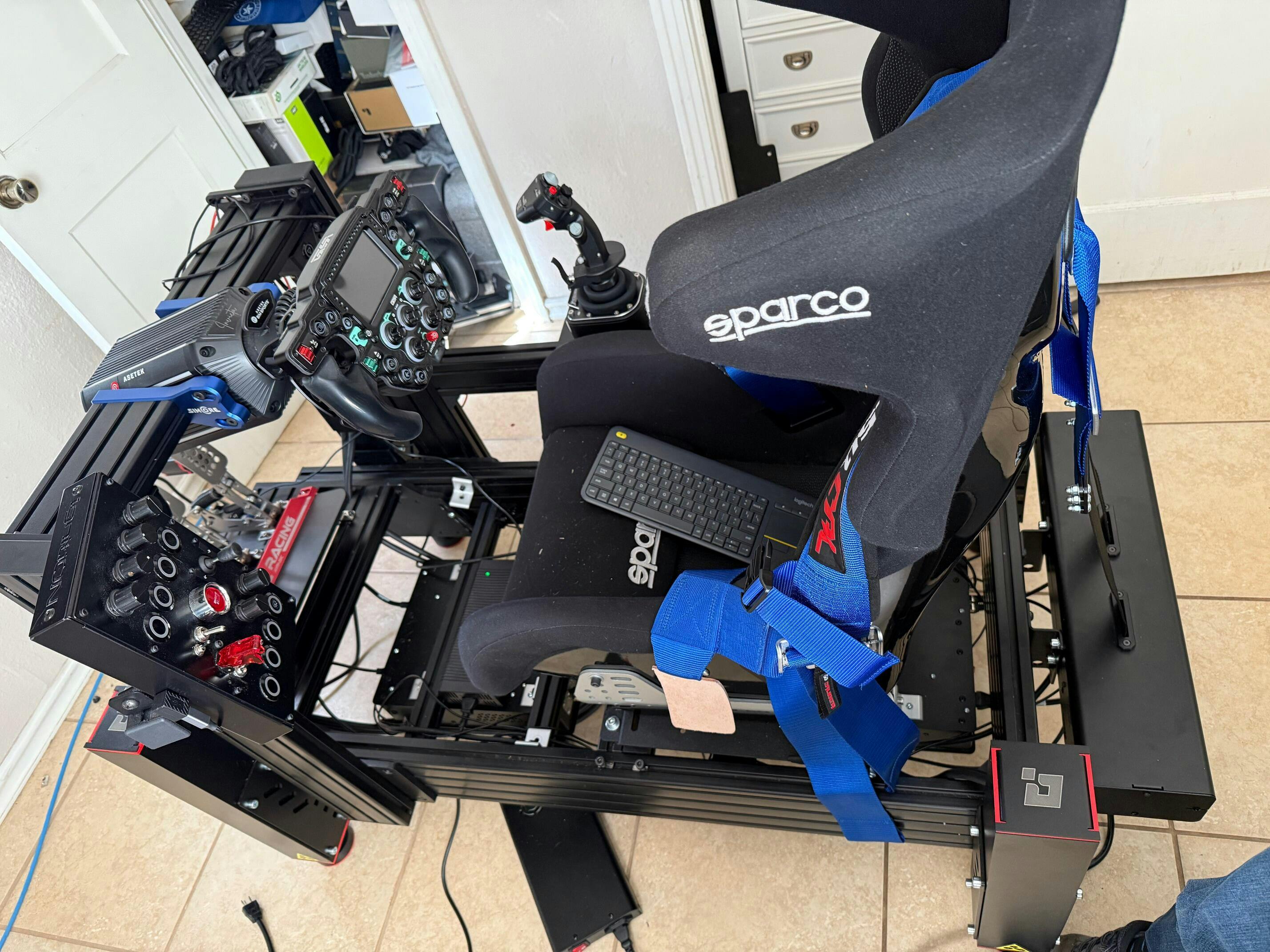

First the team at Apevie Simulators is to be commended as they were very polite with communicating through email and affording me the chance to test out their high-end simulators when purchasing this Belt Tensioner on-site. Extremely knowledgeable staff and their passion was clear during my product pickup.

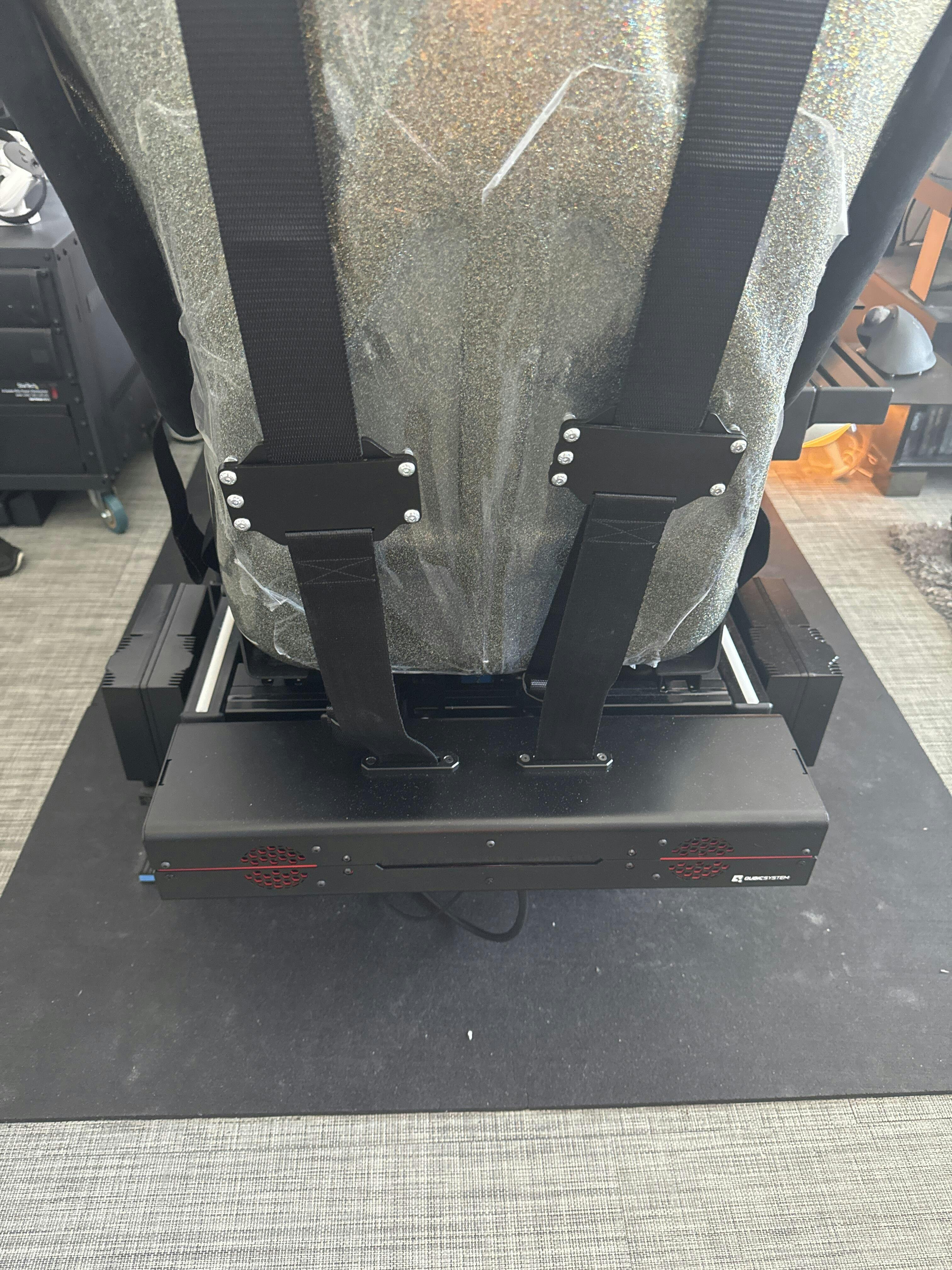

The BT-1 itself is pretty incredible. It is powerful and can absolutely be felt when assigning the many effects like braking, cornering, or adding vibration feedback such as rpms or rumble strips that are felt in your chest and shoulders clearly! It is also a very silent unit and is barely heard at all even under intense use(my fans and paddle shifters are louder!).
The Apevie 4-point belt also fits perfectly and is extremely comfortable. Highest recommendation on both the unit and the shop!
