QS-CH2 2DOF motion platform with traction loss

$11,500.00 Sale Save
QS-CH2 2DOF motion platform with traction loss
QS-CH2 2DOF motion platform with traction loss
QS-CH2 2DOF motion platform with traction loss
QS-CH2 2DOF motion platform with traction loss
QS-CH2 2DOF motion platform with traction loss
QS-CH2 2DOF motion platform with traction loss
QS-CH2 2DOF motion platform with traction loss
QS-CH2 2DOF motion platform with traction loss

QS-CH2 2DOF motion platform with traction loss

$11,500.00 Sale Save

Item is in stock Only 1 left in stock Item is out of stock Item is unavailable

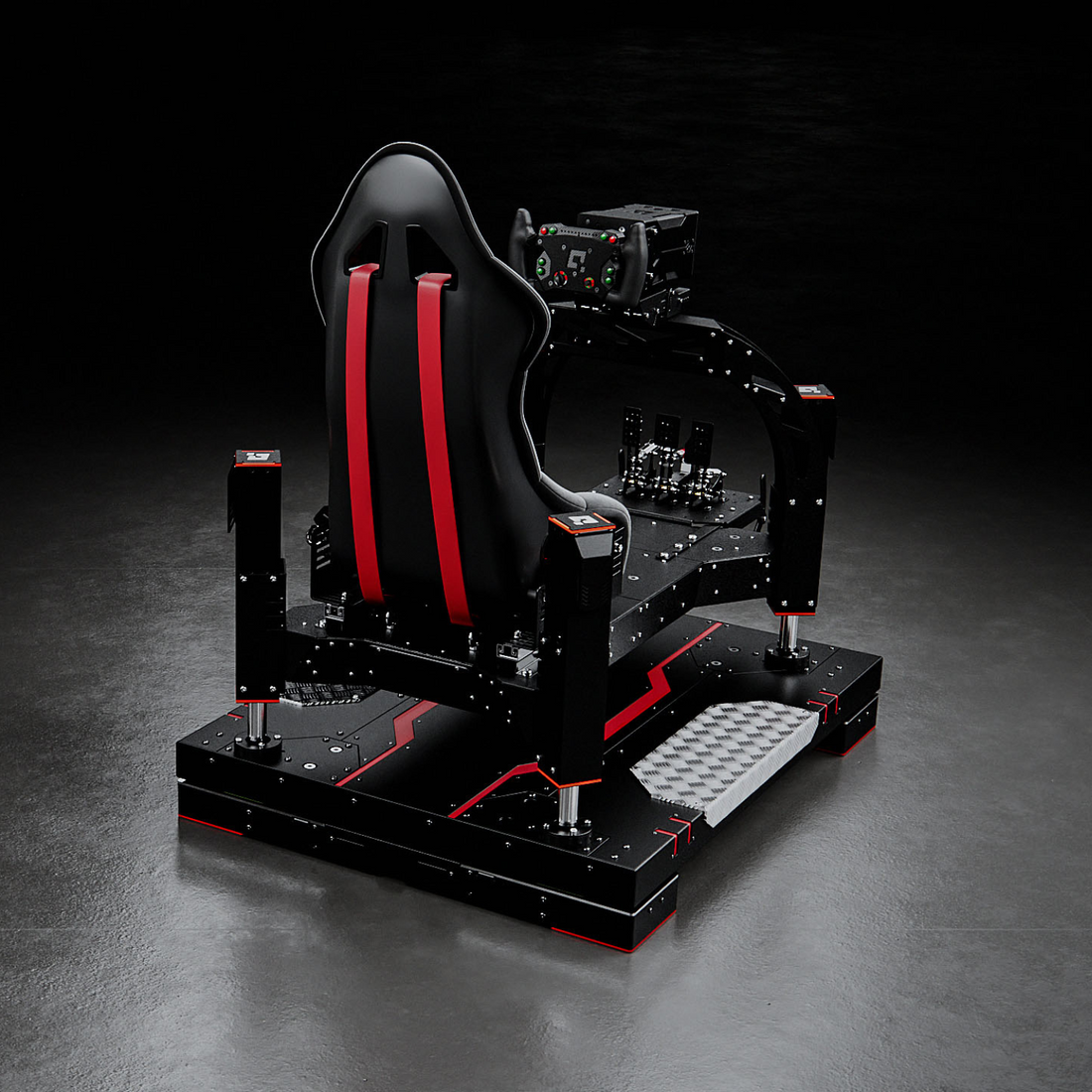

2DoF motion platform that gives the SURGE and YAW motion for even better of feeling vehicle’s traction loss, breaking and accelerating. The motion system based on world’s fastest linear actuator’s technology provides incredible levels of vehicle feedback to the driver. This motion platform is suitable for RallyDriftGT and F1 simulations. The platform is fully compatible with Qubic System 3DOF actuator’s set and QS-CH1 motion cockpit.

Please contact the Apevie team for shipping quote.

  • Based on world’s fastest Qubic System linear actuators
  • Compact and lightweight design
  • Suitable for Rally, Drift, GT and other racing simulations
  • Supported by dedicated software QubicManager: motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles
  • Traction loss
  • Also, available as expansion of QS-CH1 motion cockpit
  • Proudly made in EU: Engineered, Designed and Manufactured in Poland

QS-CH1 FULL SET

2 x QS-220-PL motion set:
4x QS-L1 – linear actuator with stabilization plate
2x QS-SB2 – power cabinet (control module)
1x QS-SBML-2 – motion lock cable (up-link/down-link) – 2 meters long
1x Ethernet RJ-45 cable – 2 meters long
1x Power cable

1x QS-MC6 controller set:

1x M10 – USB controller
1x QS-SBML-1 – motion lock with additional cable
1x QS-MBT-1 – M-BUS terminator (RJ45 plug with resistor)
1x USB cable (mini)
1x Ethernet RJ-45 cable – 3 meters long

Dedicated, stiff rig with attaching points and mounting brackets:

2x mounting bracket: power cabinet
4x mounting bracket: actuator
1x mounting bracket: steering wheel with adjustment
1x mounting bracket: pedals
1x mounting bracket: racing seat with adjustment

QS-CH1 BASE

1x motion floor with mounting brackets:

2x mounting bracket: power cabinet
4x mounting bracket: actuator
1x mounting bracket: steering wheel with adjustment
1x mounting bracket: pedals
1x mounting bracket: racing seat with adjustment

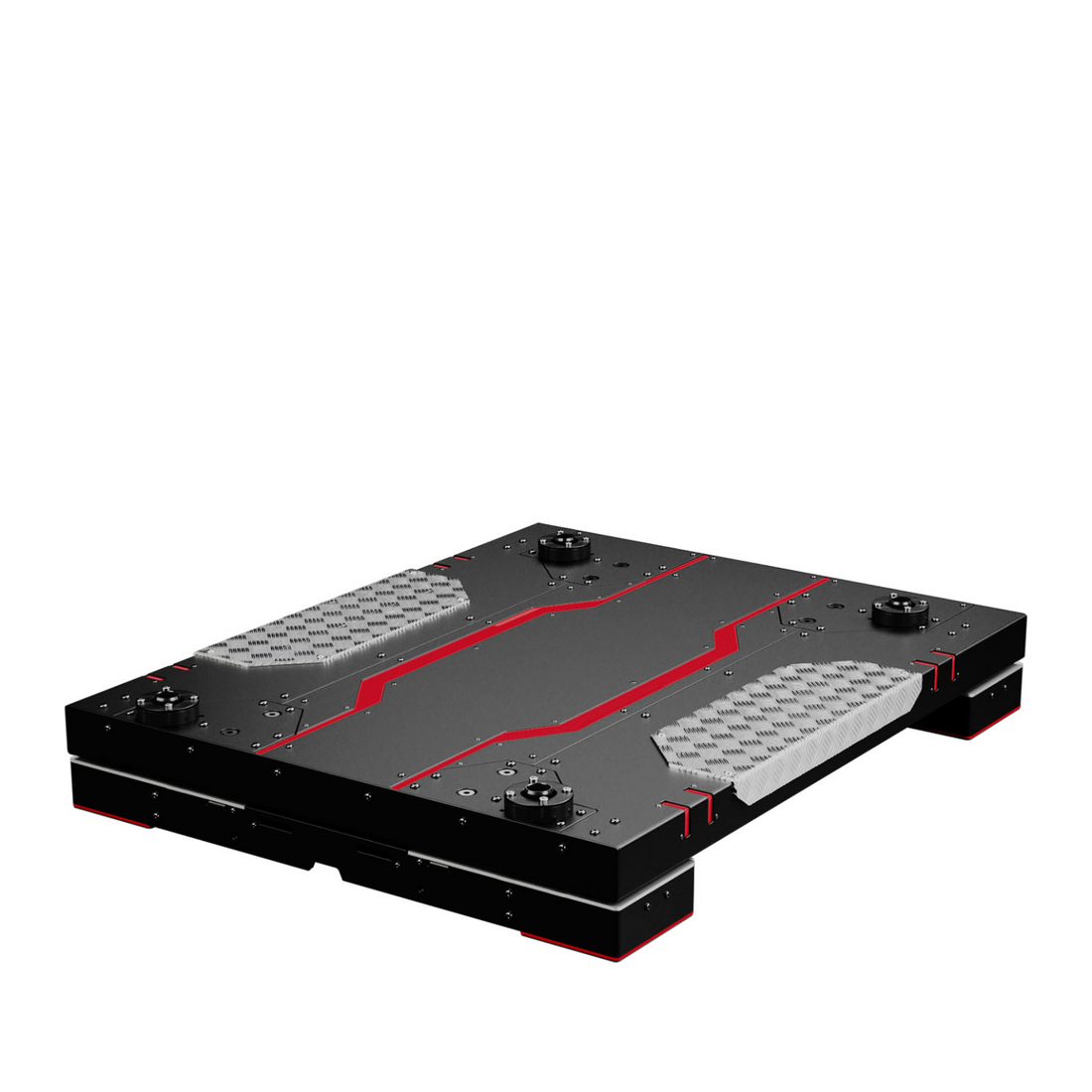

QS-CH2 MOTION PLATFORM

Architecture: 2DOF
Platform Weight: 160 kg | 352.74 Ib
Gross Moving Load: 300 kg | 661.39 lb

QS-CH2 SYSTEM PERFORMANCE

Surge: – 50 mm, 50 mm
Yaw: – 7.2°, 7.2°

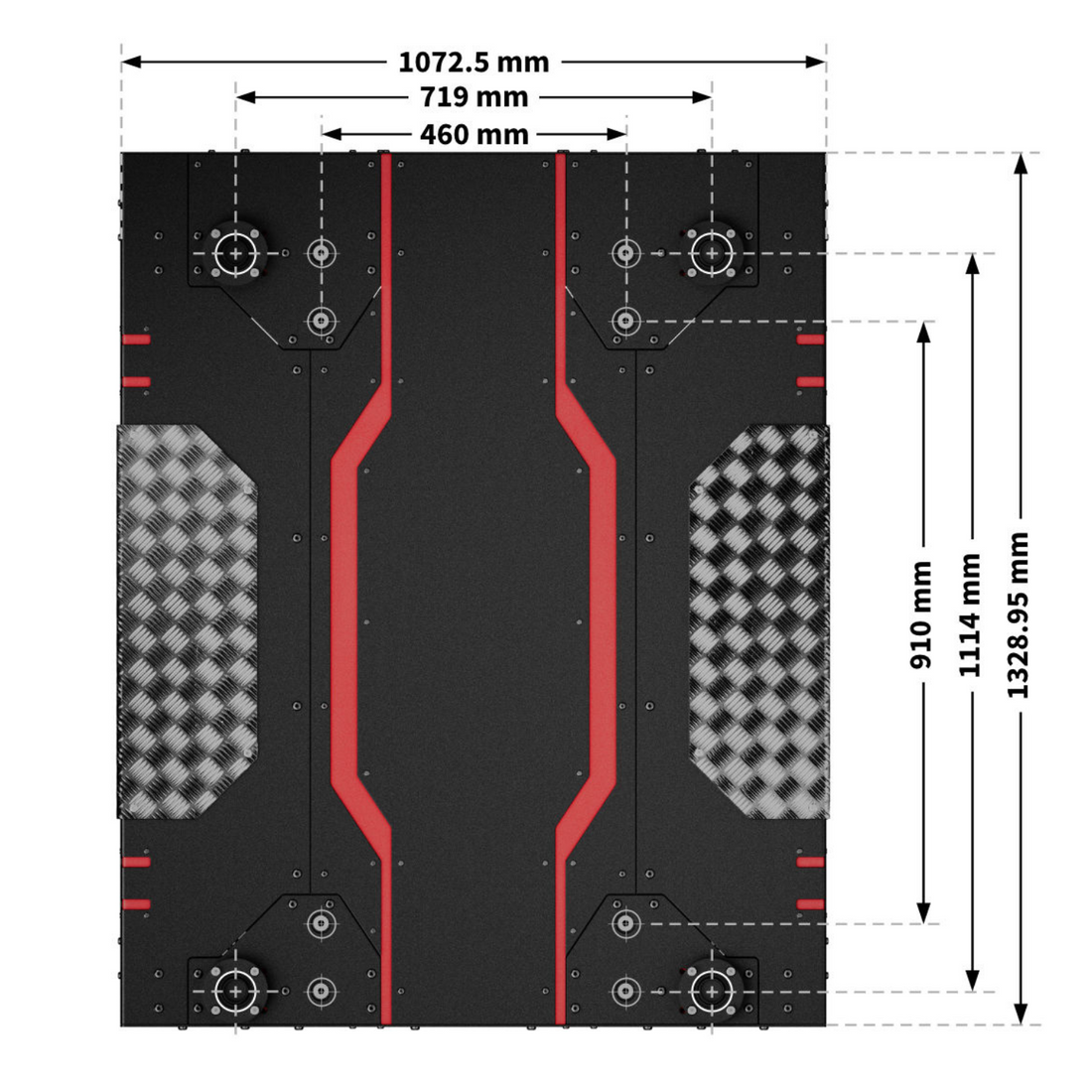

QS-CH2  DIMENSIONS

Total length: 1328.95 mm | 52.32 in
Total width: 1072.5 mm | 42.22 in
Total height: 213 mm | 8.39 in

QS-CH2 POWER SUPPLY REQUIREMENTS
115 / 230 VAC Single Phase

CONNECTION: USB

Even most advanced hardware is nothing without good software. QubicManager powered by Motion Systems company is professional and specialized software for the platform and is click and play compatible with all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles.

Over 80 integrated and supported racing and flight games.

Download User Manual

  • Shipment: We ship from Huntington Beach, CA and the shipment take only 1-2 days after the order was placed.
  • Delivery: Delivery usually takes 2-6 business days after shipment.
  • Returns: 15-day  free returns policy. Learn more about our returns here!

PRECISE VEHICLE FEEDBACK AND OVERSTEER

The QS-CH2provides the most precise traction loss feeling by moving the entire cockpit. The motion system is based on the world’s fastest linear actuator’s technology, which delivers an incredible level of instant feedback to the driver. This motion platform is suitable for Rally, Drift and any racing simulations. By providing the oversteering effect, the platform can be used effectively for real and sim racing drivers training making them feel what happens to the front and the rear of the vehicle.

APPLICATIONS

QS-CH2 platform has been designed to provide the most immerse traction loss feeling as it gets to teach them positive reactions and earn muscle memory needed to keep the vehicle on the best possible racing line. Drivers must fully control the slip of the front and rear wheels on their vehicles. They want to master the balance between total loss of grip and smooth corner entry.

TRACTION LOSS EFFECT AND ACCELERATION / DECELERATION

QS-CH2 traction loss + surge platform is a single part of the entire rig. The QS-CH2 traction loss motion platform may not seem like a necessity, but racers who try the traction loss and get used to it find it hard to go back.

  • Over braking  is when you brake too hard, and your wheels end up locking. The traction loss platform moves the rig to simulate backward g-force on driver’s body.
  • Over steering is when the back-end of the virtual vehicle ends up slipping because you turned your steering too hard. The traction loss simulator moves the cockpit to the side with respect to the oversteering direction. During over-steering, the back-end of your vehicle is what primarily slips.
  • Over accelerating is when driver press the throttle too hard, too quickly, causing them to spin in their position. The traction loss platform moves the cockpit backwards to simulate g-force forwards on driver’s body.

MOTION DEMO

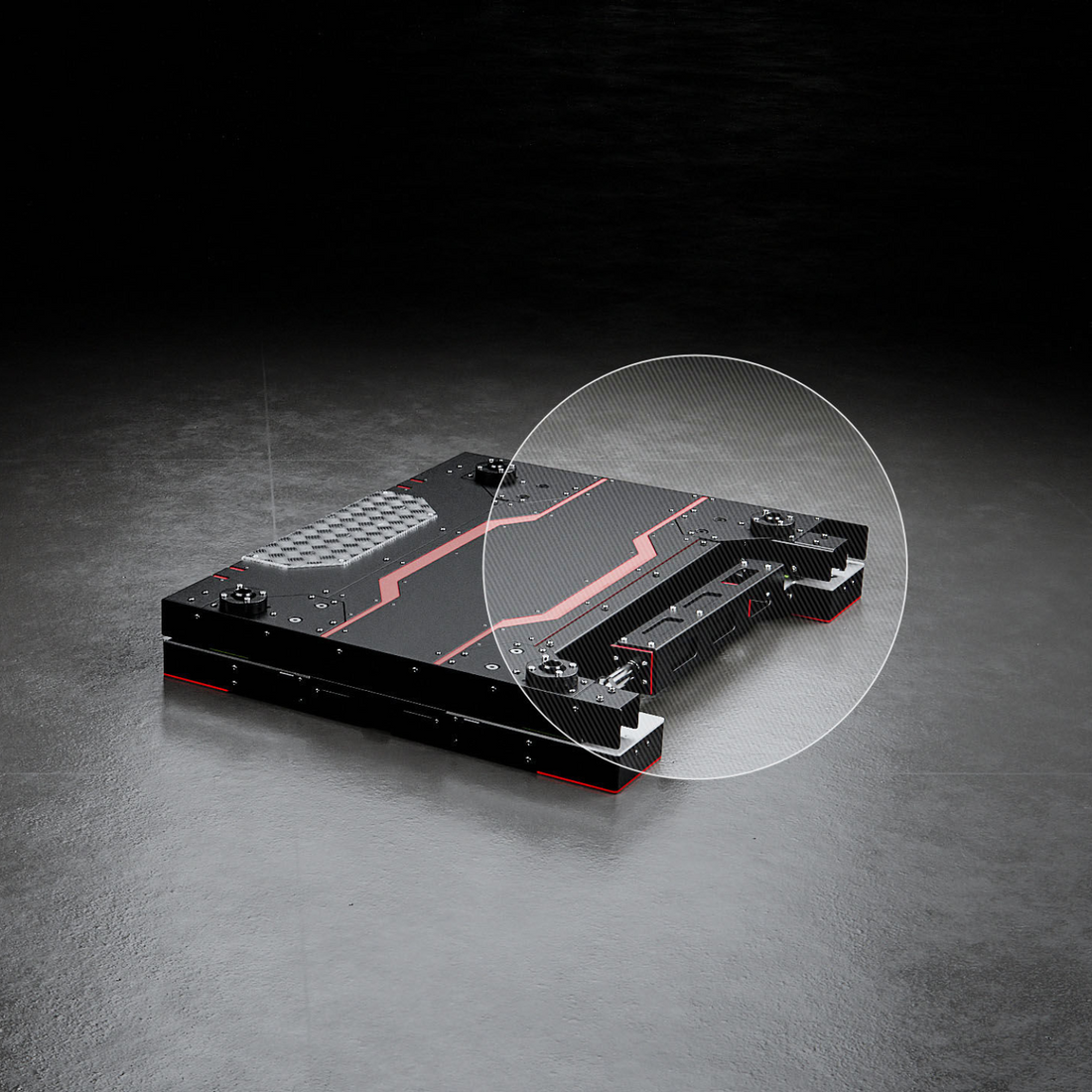

CLEVER CONSTRUCTION

QS-CH2 allows you to easily expand the capabilities of cockpits by adding SURGE and YAW movements. By introducing technology with the QS-220, you can achieve extraordinary precision and smooth movements. MotionSystems engineers also took care to reduce noise, which often interferes with perfect immersion with the movement platform.

SUPPORTED GAMES & APPLICATIONS

22 Racing Series
American Truck Simulator
Assetto Corsa
Assetto Corsa Competizione
Automobilista
Automobilista 2BeamNG.drive
City Car Driving EE
Copa Petrobras de Marcas
Design it Drive it: Speedboats
DiRT 3 | DiRT 4 | DiRT Rally | DiRT Rally 2.0
Drift Cyber Sport
Euro Truck Simulator 2
F1 2015 | F1 2016 | F1 2017 | F1 2018 | F1 2019 | F1 2021
Formula Truck 2013
Forza Horizon 4
Forza Motorsport 7
Game Stock Car
Game Stock Car Extreme
GP Bikes
GRID 2 | GRID 20 | GRID Autosport
GT Legends
GTR 2
iRacing
KartKraft
Kart Racing Pro
Live for Speed
MX Bikes
Project CARS | Project CARS 2 | Project CARS 3 | Project CARS Pagani Edition | Project CARS Pro
Race 07
RaceRoom Racing Experience
rFactor | rFactor
Richard Burns Rally
Touring Karts
World Racing Series

Aerofly FS2
Condor
Condor 2
DCS World
DCS World 2.1 Alpha
DCS World 2.5 Beta
Falcon 4
Falcon 4 BMS
Microsoft Flight Simulator X
Microsoft Flight Simulator 2020
Flight Sim World
IL-2 Sturmovik Cliffs of Dover
IL-2 Sturmovik Cliffs of Dover Blitz
IL-2 Sturmovik Great Battles
Prepar3D v2
Prepar3D v3
Prepar3D v4
Prepar3D v5
War Thunder
X-Plane 9
X-Plane 10
X-Plane 11

Expansim
GOATi Traffic Simulation
Matlab & Simulink
Steel Beasts Pro
VBS3
VBS4

NoLimits 2
VR Regatta
