Experience the Accuforce Sim Racing Dash Board!

This sim racing dash board is designed to take your SimXperience Accuforce Wheelbase to the next level. This high-quality dash board provides seamless access to essential controls, making adjustments mid-race effortless and enhancing your overall performance.

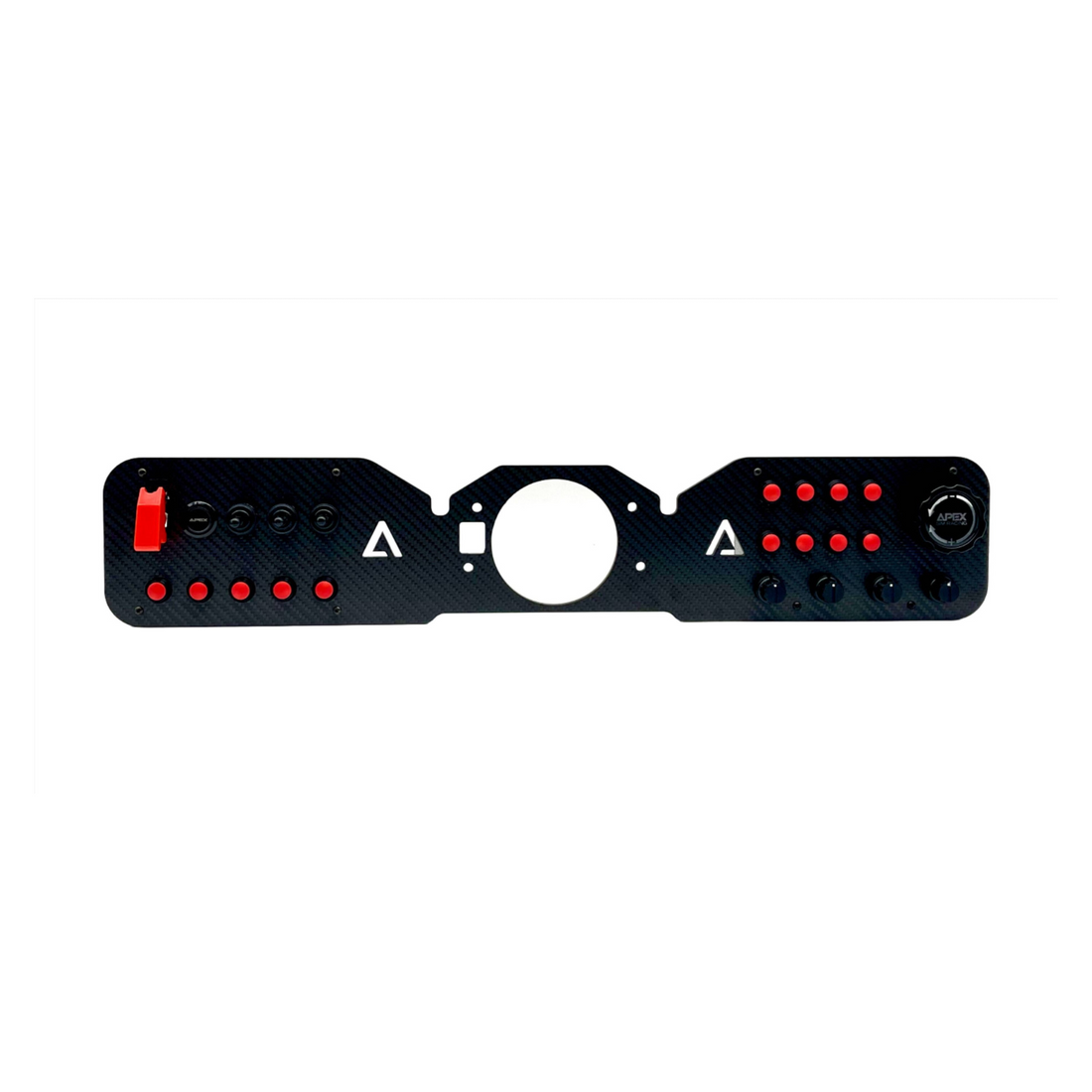

Constructed from a 6mm real carbon fiber matte twill weave plate, it offers exceptional durability with zero flex, unlike other dash boards on the market. The dash board mounts directly to the front of the Accuforce Wheelbase, ensuring an easy and secure installation.

Compatibility:

• PC - 1 USB connection (includes 1 - 6ft USB & 1 - 2ft Cat 6 Cable)

• Accuforce V1 & V2

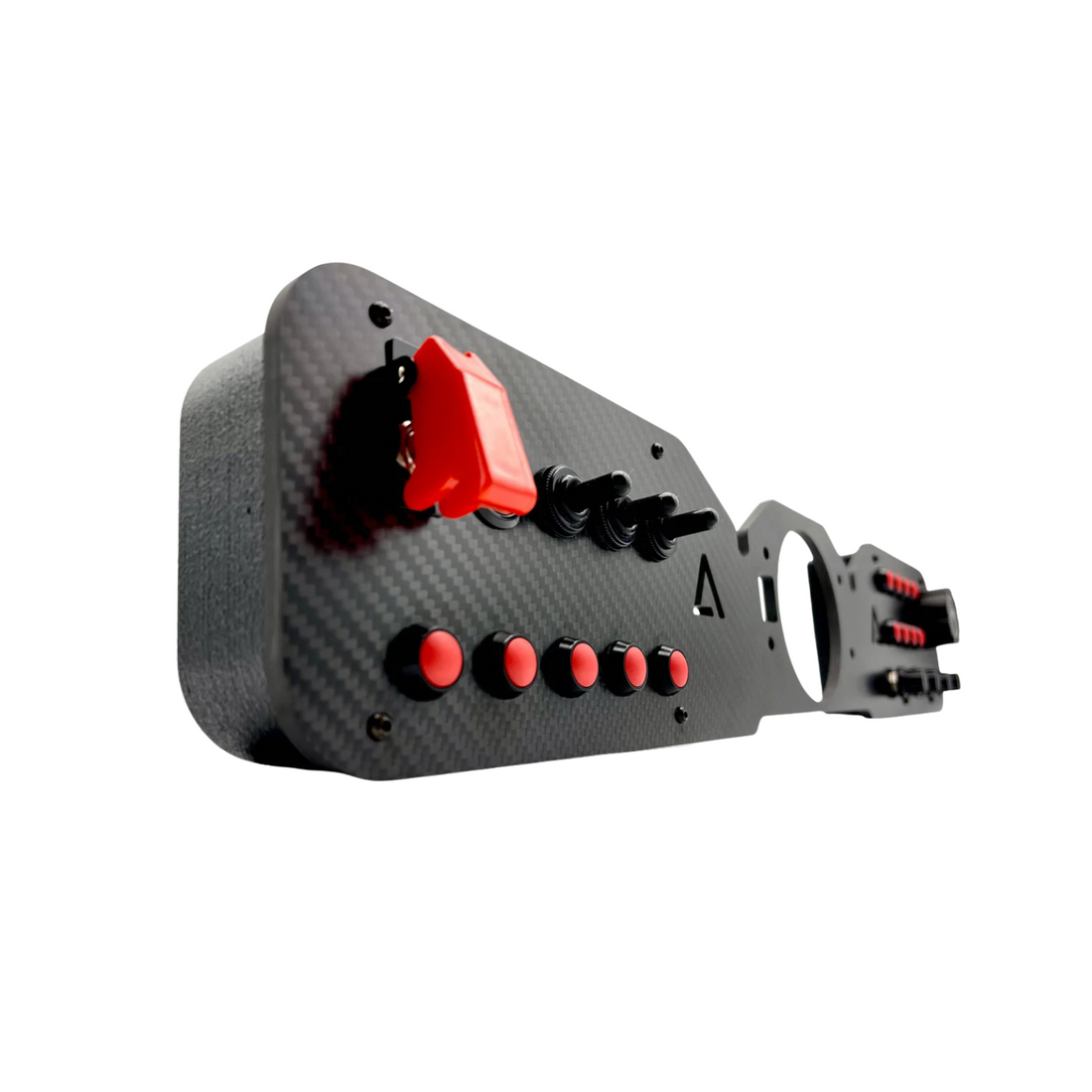

Dash Board Left Side:

• 1 On/Off latching toggle with guard (programmed as momentary)

• 1 Apex branded engine start button

• 3 MOM OFF MOM toggles with black boot

• 5 12mm momentary push buttons (multi-switch option adds a 7-way multi-switch to replace the center push button)

  • Up, Down, Left, Right, Push, Encoder Left & Right

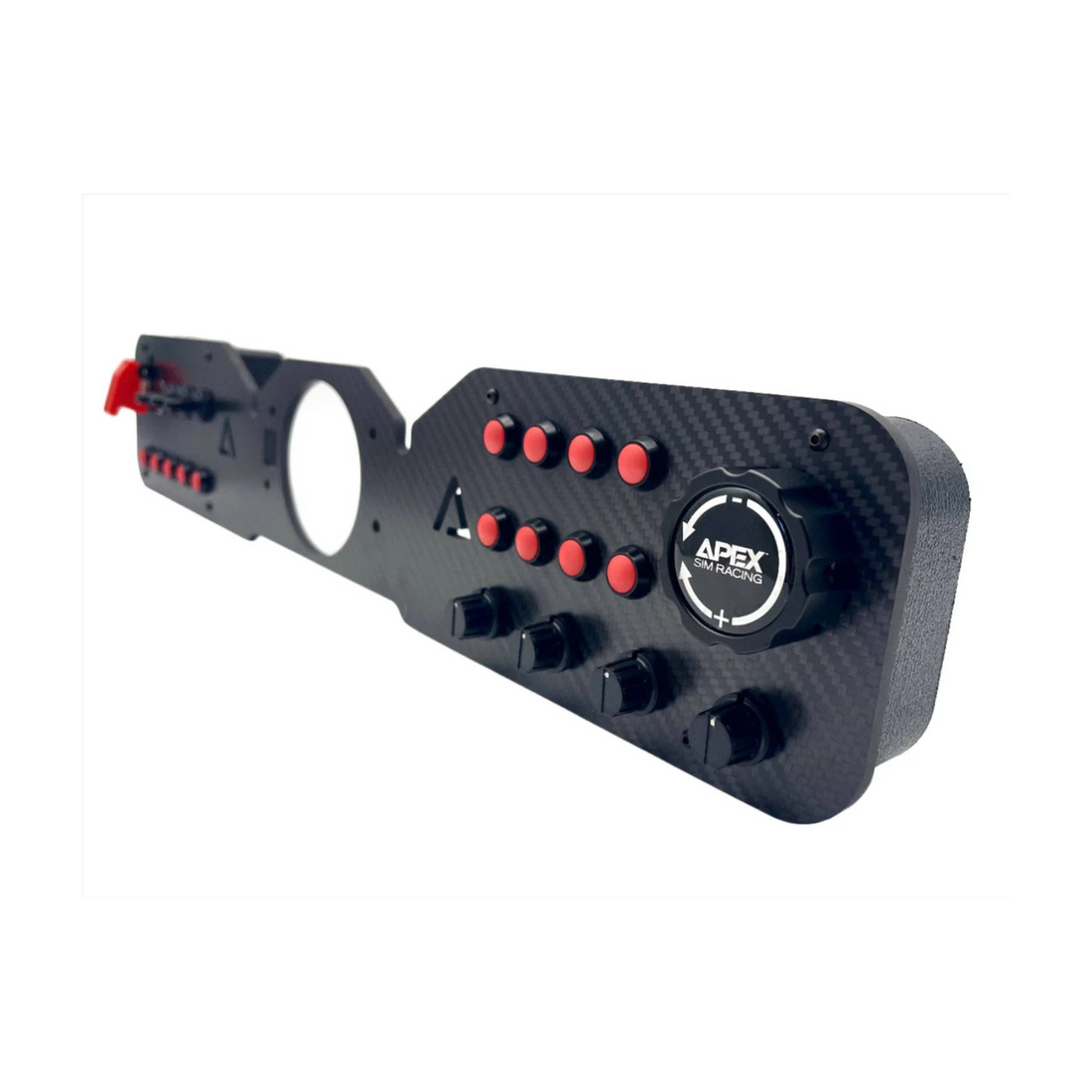

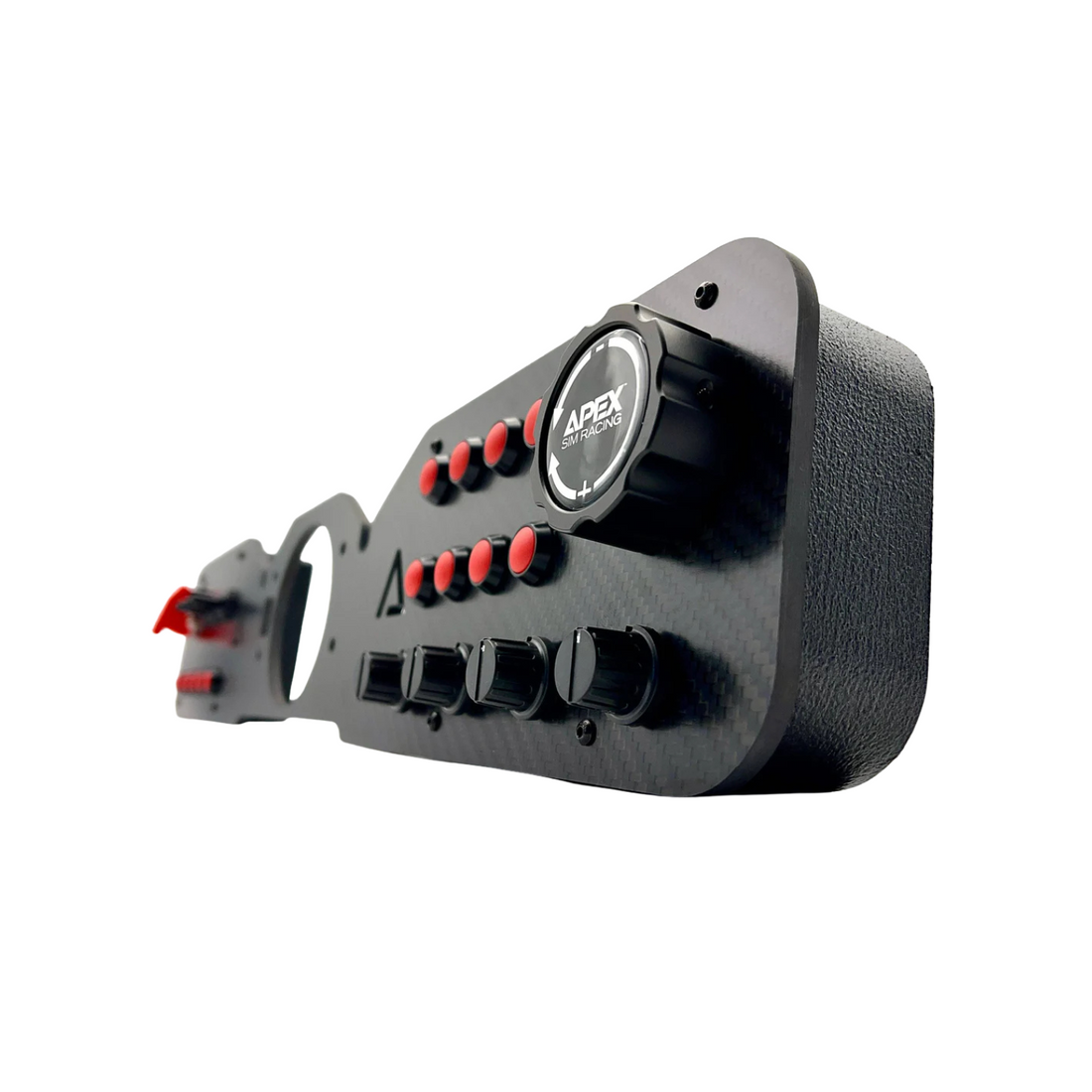

Dash Board Right Side:

• 8 12mm momentary push buttons

• 4 CTS encoders

• 1 Billet aluminum brake bias knob (can be used for other settings)

Note: Some customers have reported EMI from Fanatec wheelbases. If you experience button press issues, ground the dash to the wheelbase with the provided wire.

Grounding Instructions:

1. Connect the 2-pin JST cable to the PCB

2. Strip about 1 inch off the wire, route it to the wheelbase, and wrap it around the bolt between the rear of the dash and the front of the wheelbase as pictured below

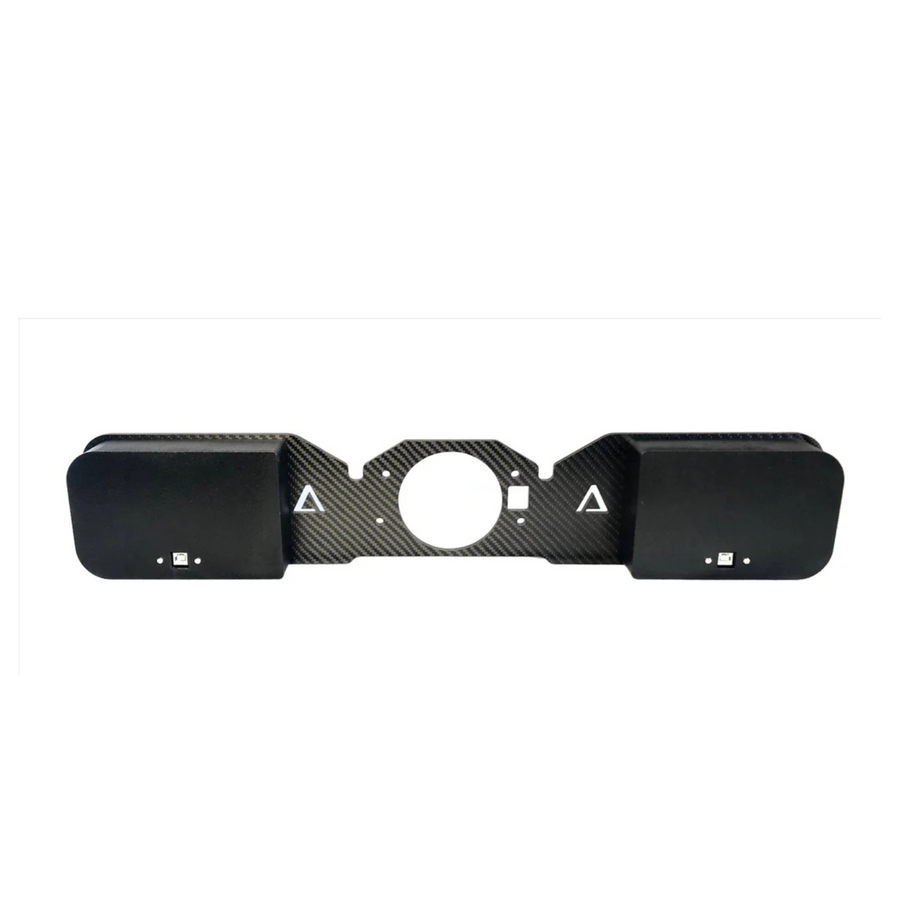

3. Mount the dash as normal with the wire between the carbon plate and the wheelbase

If you need assistance, please contact support.
